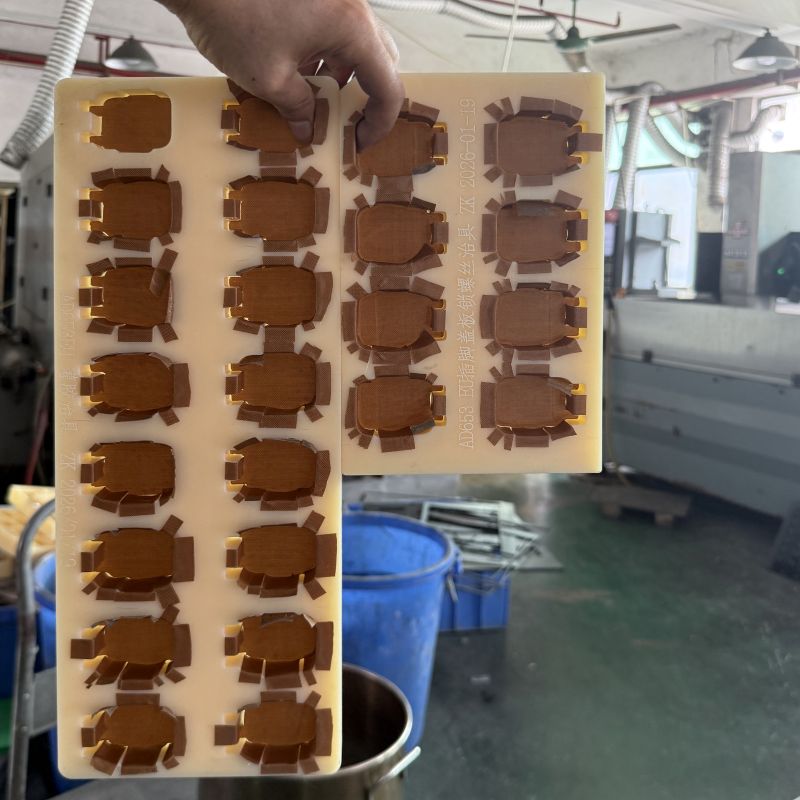

Custom nylon multi-cavity assembly fixture for batch product assembly, screw fastening and dispensing
Custom Nylon Assembly Fixture
Multi-cavity nylon positioning jig for batch product assembly, screw fastening and dispensing processing.

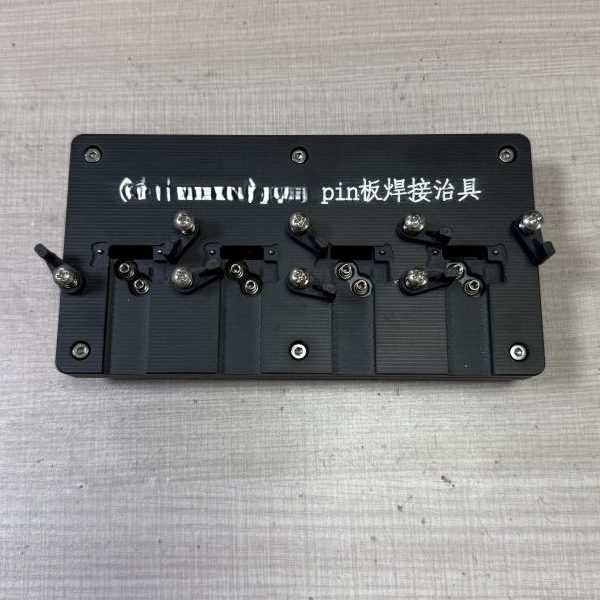

Pogo pin board soldering fixture for PCB positioning during pogo pin soldering assembly
Pogo Pin Board Soldering Fixture
Custom clamping fixture for positioning PCB board during pogo pin soldering assembly.

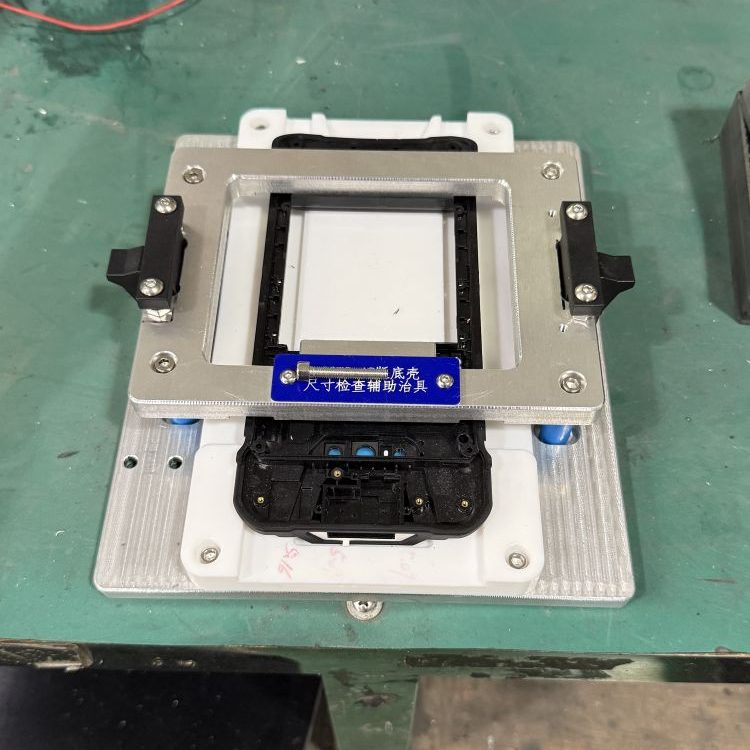

Plastic housing dimension inspection fixture for checking plastic casing dimension tolerance
Plastic Housing Dimension Inspection Fixture
Custom inspection jig for positioning plastic casing to check product dimension tolerance.

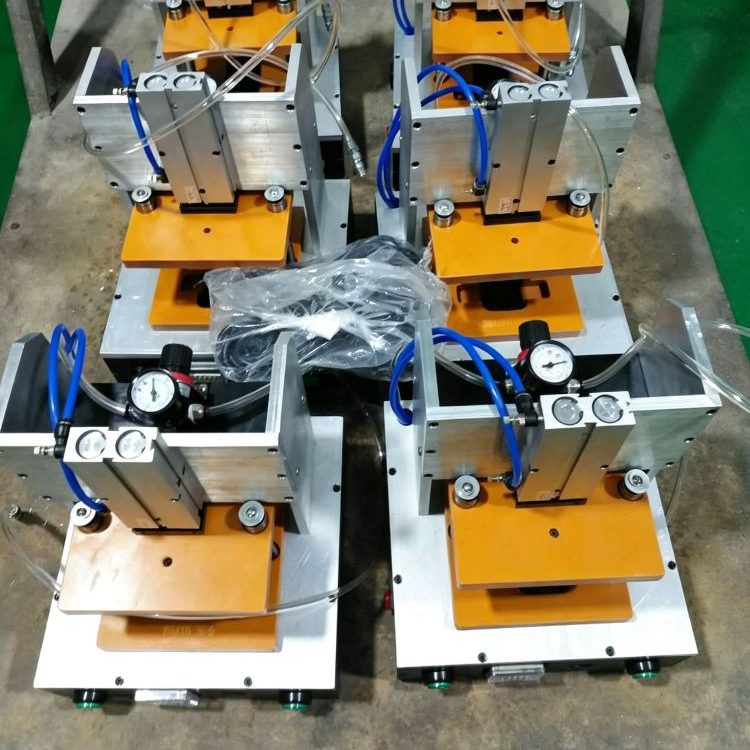

Batch pneumatic pressing assembly fixture with multiple pneumatic cylinders for product press fitting
Batch Pneumatic Pressing Assembly Fixture
Multiple sets pneumatic cylinder press jig for product assembly and press fitting process.

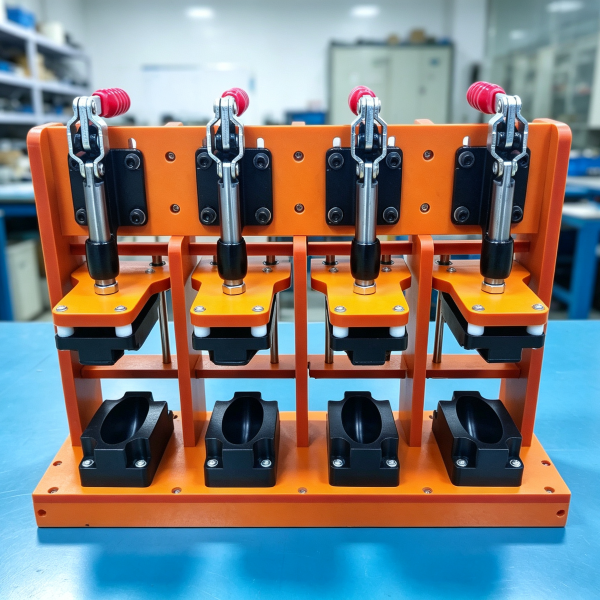

Manual four-station press assembly fixture for product assembly, positioning and press fitting
Manual Four-Station Press Assembly Fixture
Multi-station manual pressing jig for product assembly, positioning and press fitting.

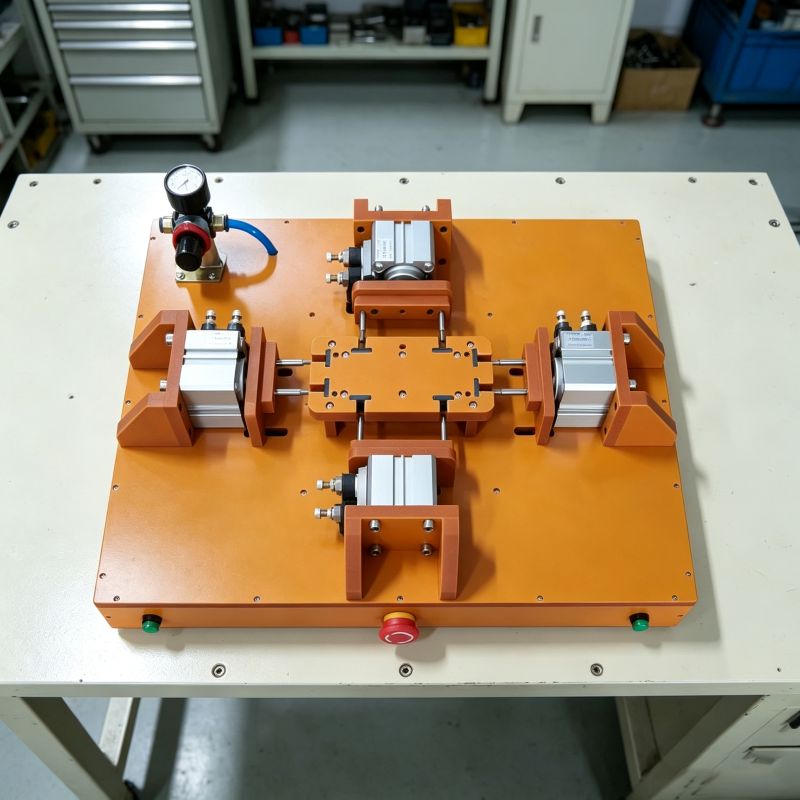

Multi-directional pneumatic clamping and positioning fixture for stable workpiece assembly
Multi-Directional Pneumatic Clamping & Positioning Fixture
Pneumatic clamping jig for stable product positioning and assembly operation.

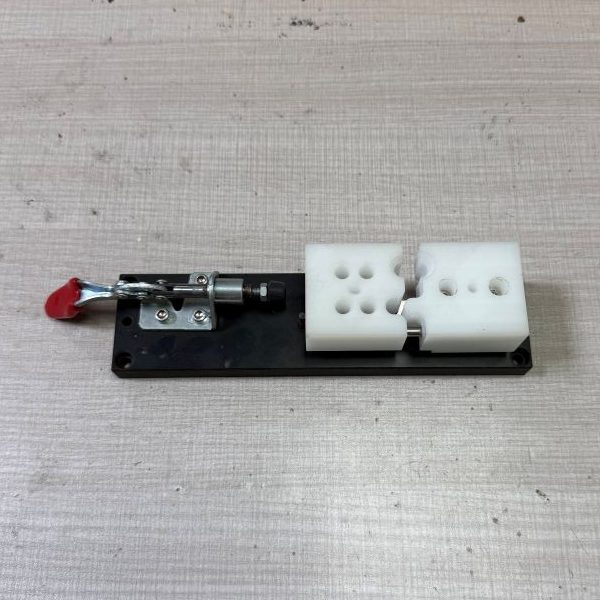

Small quick clamp assembly jig for small electronic component assembly and positioning
Small Quick Clamp Assembly Jig
Custom manual clamping jig for small component assembly and positioning.

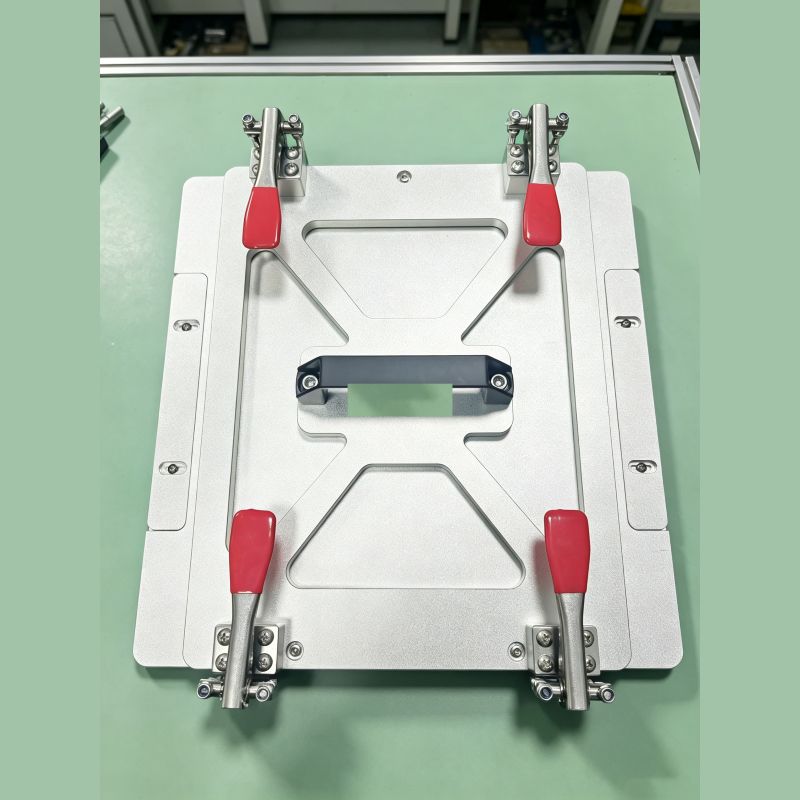

Aluminum plate quick clamp workpiece positioning fixture for manual assembly workpiece locating
Aluminum Plate Quick Clamp Workpiece Positioning Fixture
Quick clamp locating fixture on aluminum base plate for workpiece positioning in manual assembly.

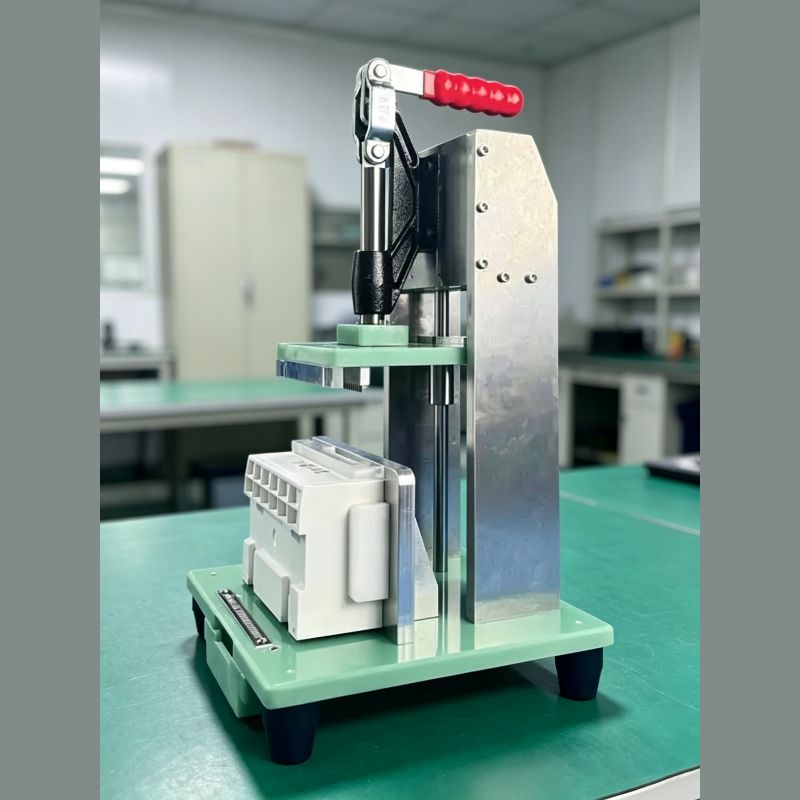

Manual press assembly fixture with quick clamp for plastic component pressing and positioning
Manual Press Assembly Fixture
Quick clamp assembly jig for plastic component pressing and positioning.

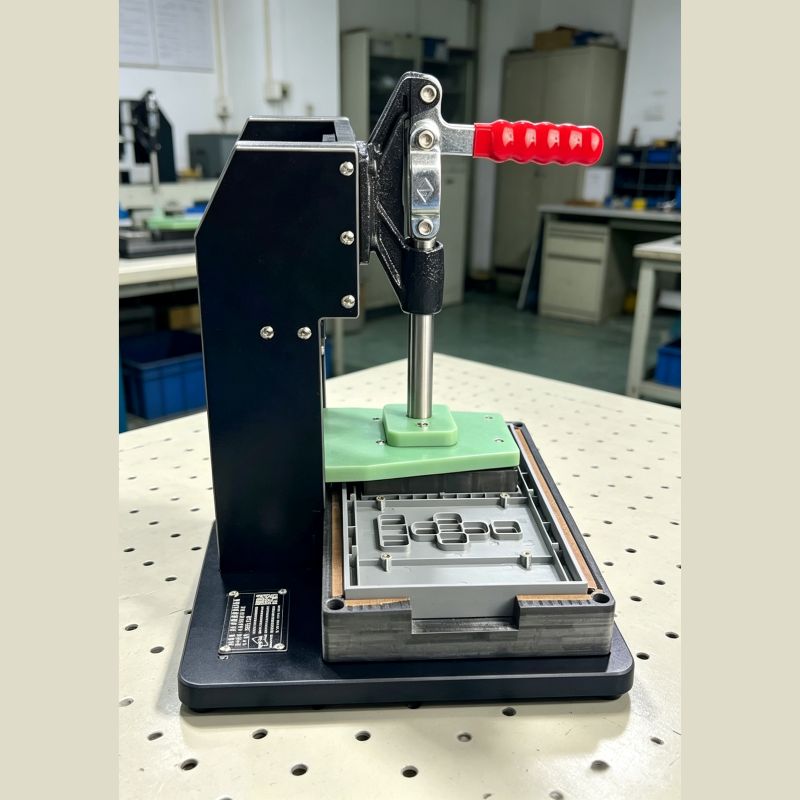

Manual four-cavity plastic parts press assembly fixture for plastic component press fitting
Manual Four-Cavity Plastic Parts Press Assembly Fixture
Multi-cavity manual pressing jig for plastic component assembly, positioning and press fitting.

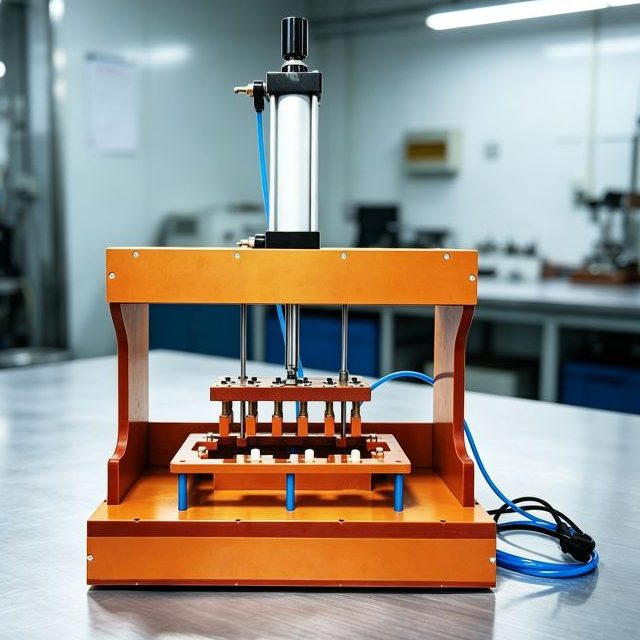

Pneumatic spring pin assembly fixture, air cylinder driven for spring pin installation
Pneumatic Spring Pin Assembly Fixture
Pneumatic cylinder driven jig for spring pin installation and product assembly.

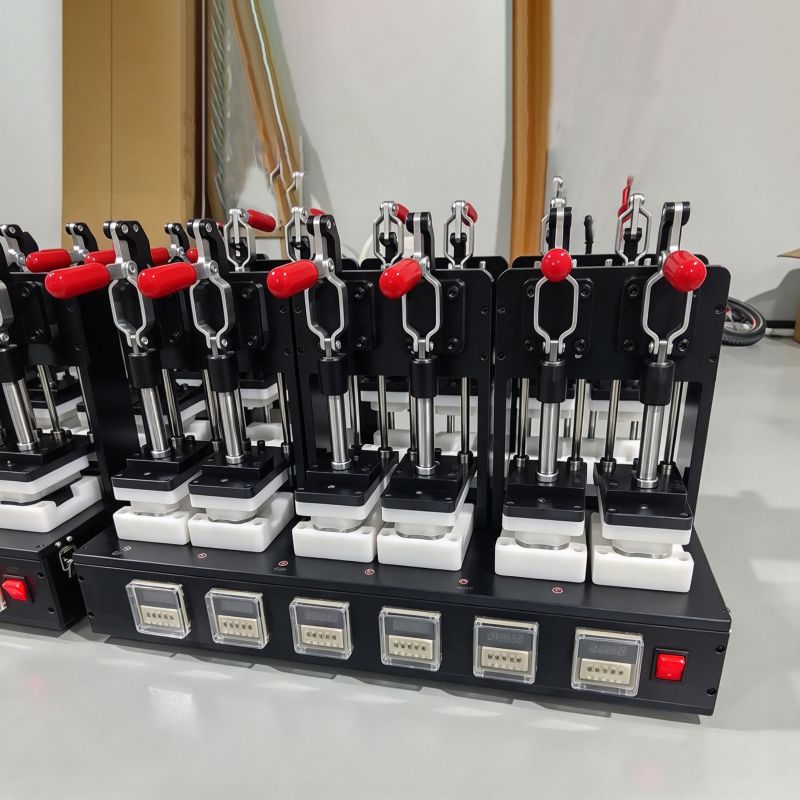

Multi station manual pressing fixture with timer display, 6 station hand clamp tooling for electronic parts batch assembly
Multi-station Manual Pressing Fixture With Timer Display
6 independent stations with separate timing modules for electronic parts batch pressing & assembly

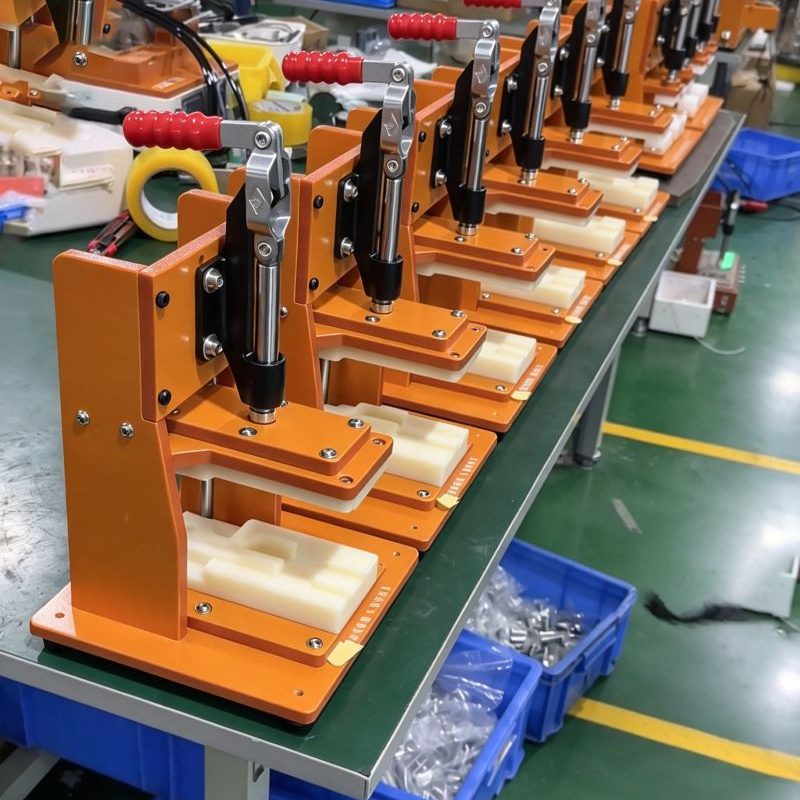

Manual quick clamp assembly fixture, bakelite frame hand press tooling for plastic parts assembly workshop
Bakelite Frame Manual Quick Clamp Assembly Fixture
Heavy duty tabletop hand clamp tooling for custom plastic parts precision assembly
