Custom ICT Test Fixtures for PCB In-Circuit Testing

We design & manufacture custom ICT test jigs. Our core strength is DELLIGER compatible ICT fixtures. We also support custom development for Teradyne, Keysight ICT testers. All fixtures are tailor-made per customer PCB files. Below are our finished ICT fixture projects.

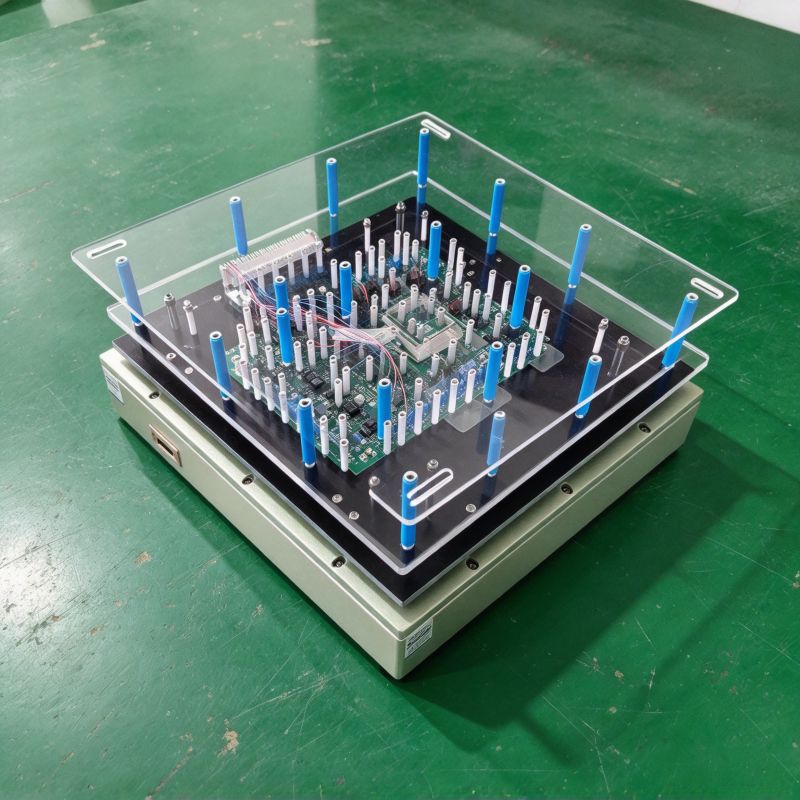

TRI ICT test fixture, press type needle bed for PCBA open short circuit and component parameter
TRI ICT Test Fixture for PCBA In-Circuit Test

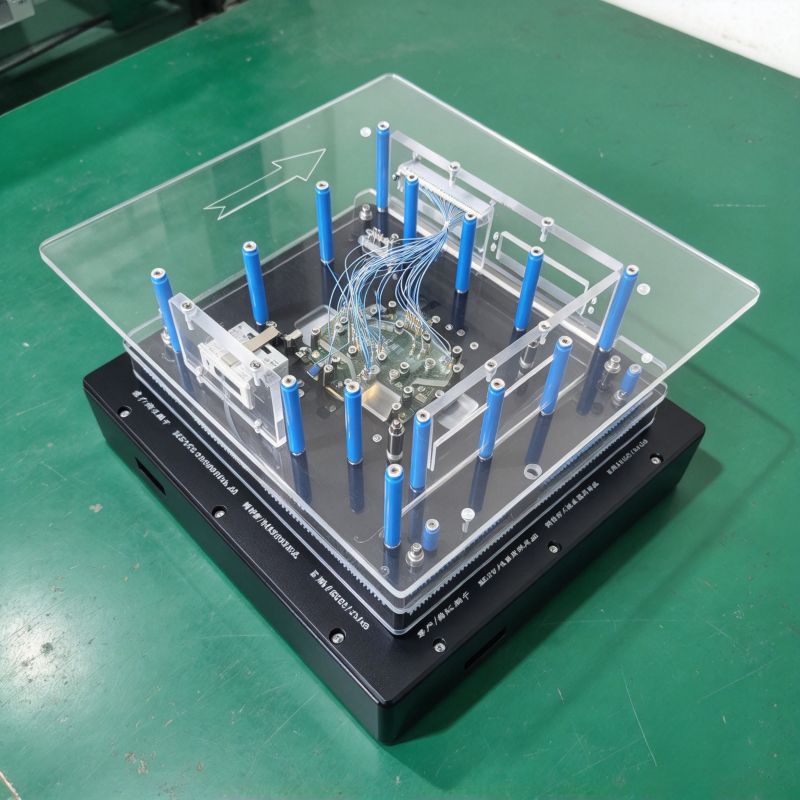

ICT test fixture matched for TRI tester, custom needle bed for high density PCBA circuit test
TRI Compatible ICT Test Fixture With Signal Wiring

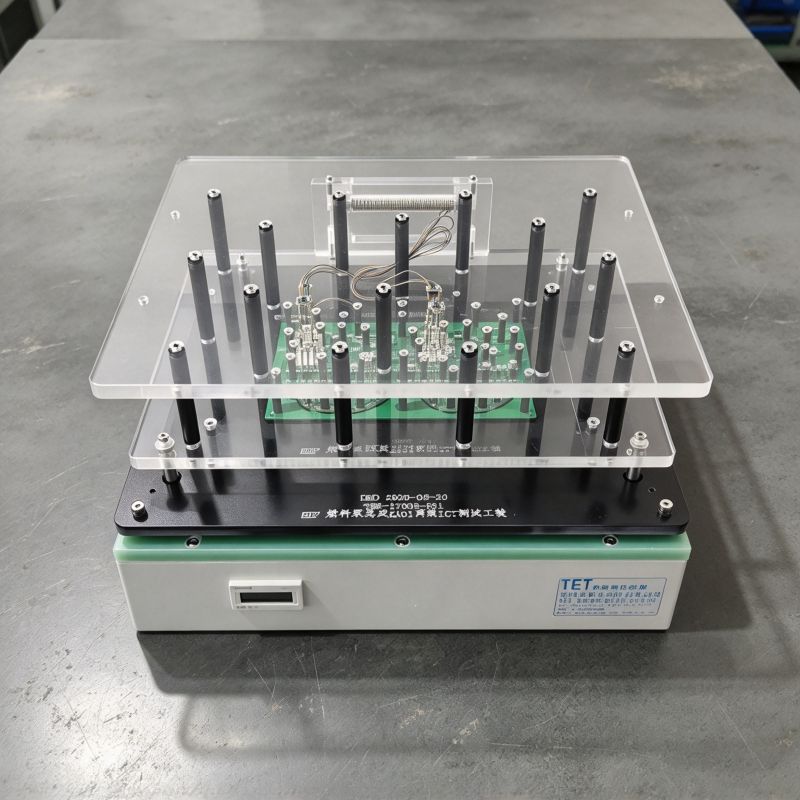

Custom ICT needle bed fixture, compatible with TRI, Teradyne, JET for PCBA in-circuit testing
Custom ICT Test Fixture Compatible With Multiple ICT Testers

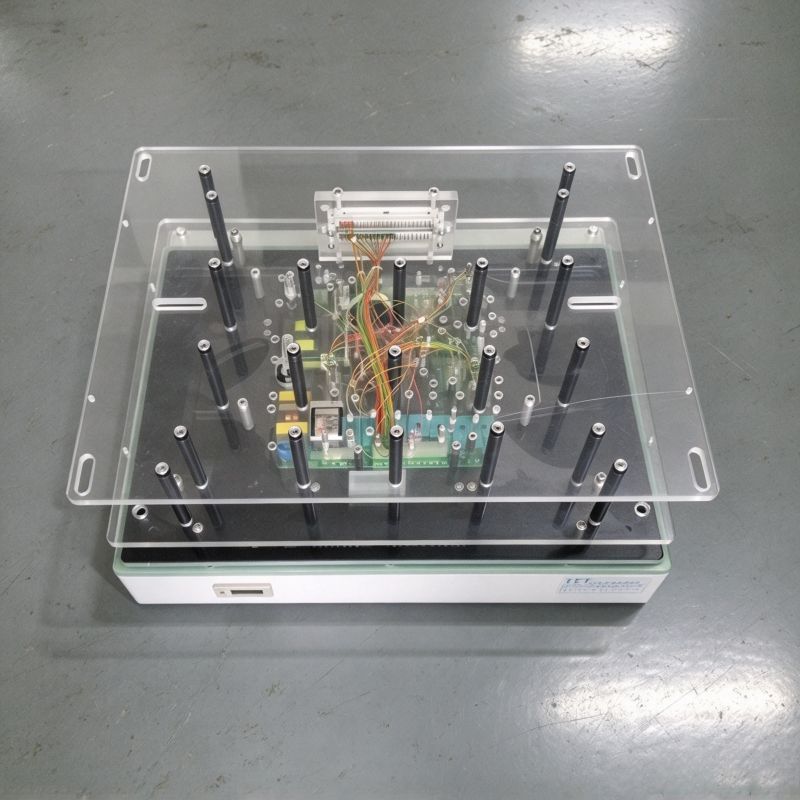

TRI ICT test fixture for small PCB, high density spring probes, acrylic cover for PCBA in-circuit test
TRI ICT Test Fixture for Small PCB with High Density Probes

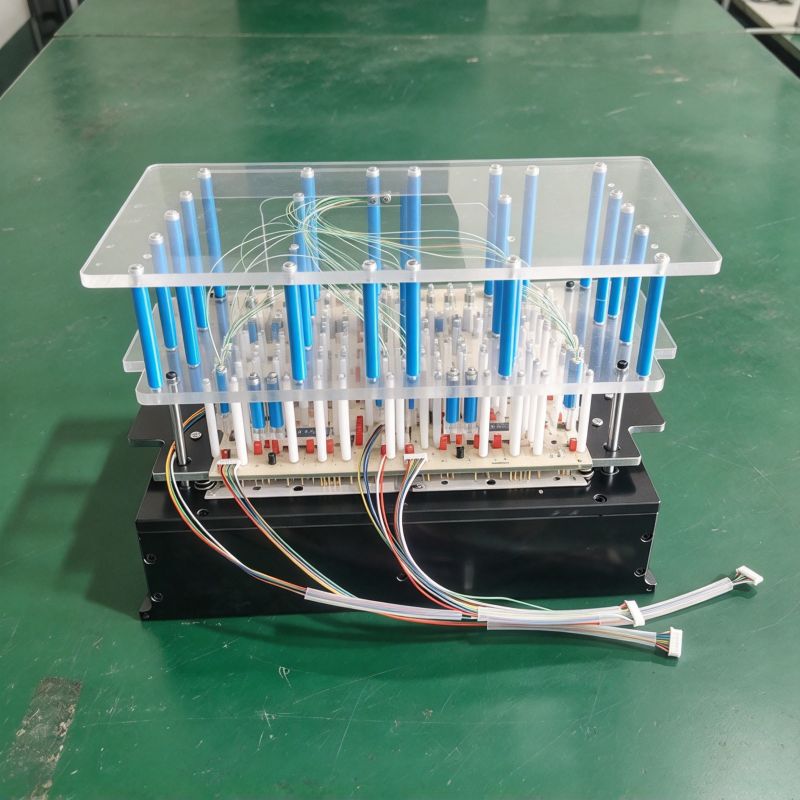

TRI compatible ICT fixture, external wiring harness, multi-channel signal output for complex PCBA test
TRI Compatible ICT Test Fixture with Wiring Harness

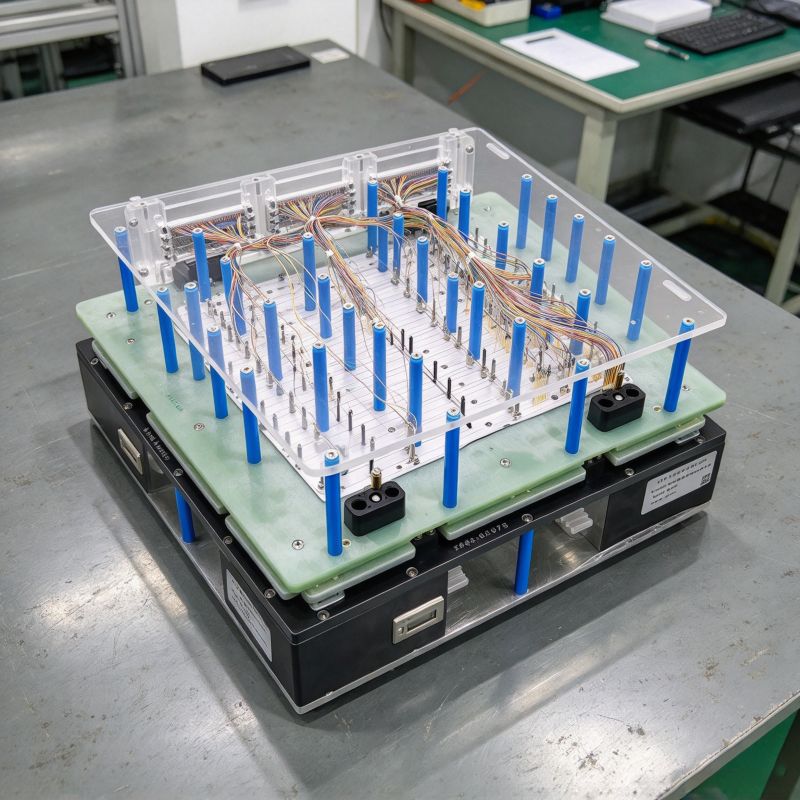

Custom ICT needle bed for large PCB and multi-panel test, compatible with TRI, Teradyne, JET on request
Custom ICT Test Fixture for Large PCB and Multi-Panel Test

Key Features of Our ICT Test Fixtures

  • Compatible with TRI, Teradyne, JET ICT testers
  • Custom needle bed built strictly based on your PCB Gerber & layout
  • High precision spring probes, stable contact for circuit testing
  • In-house CNC machining & assembly, fast prototype delivery

Applications

  • PCBA in-circuit continuity & component testing
  • Consumer electronics, power supply boards, home appliance control boards

FAQ

Q: What files do I need to provide for custom ICT fixtures?
A: Gerber file, PCB layout, BOM and test requirements.

Q: How long is the lead time for ICT test jigs?
A: Normally 7~15 working days, depending on PCB complexity.

Q: Can your ICT fixtures match TRI, Teradyne and JET test machines?
A: Yes, our custom needle bed fixtures are fully compatible with mainstream ICT testers including TRI, Teradyne and JET.
