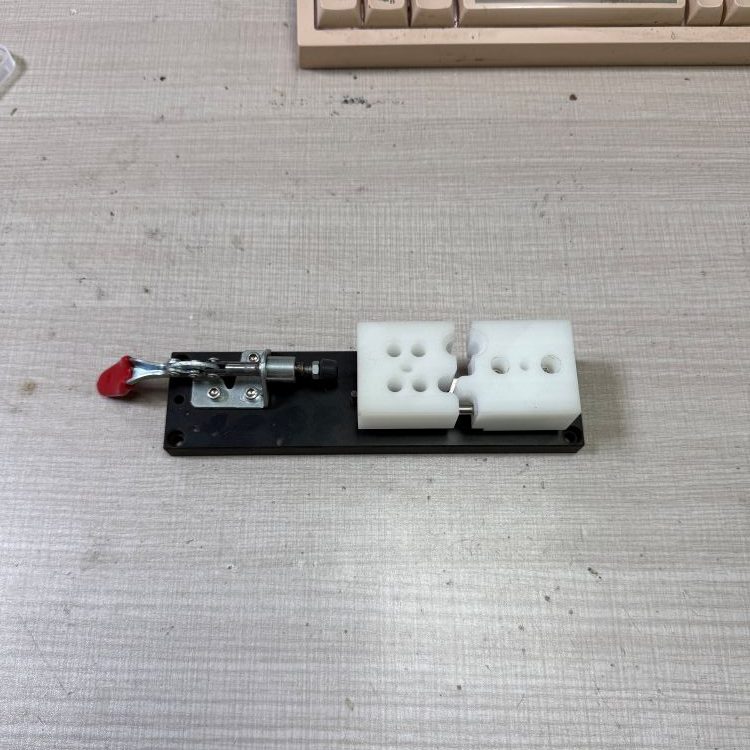

Small quick clamp assembly jig is compact manual clamping fixture made for small electronic component assembly and positioning.
This compact quick clamp jig is designed for tiny electronic components. The quick-release toggle clamp allows fast opening and locking, greatly shorten workpiece loading/unloading time. Small footprint saves bench space. It is perfect for manual assembly of small parts in low and medium batch production.
Key Features
- Compact small size, save workbench space
- Toggle quick clamp for fast lock & release
- Simple manual operation
- Custom small cavity for tiny components
- Low cost for small batch assembly
Applications
- Small electronic component assembly
- Tiny plastic part positioning
- Laboratory and small workshop manual assembly
- Prototype trial assembly
FAQ
Q1: How fast can the quick clamp open and lock?|
A1: One-hand operation, only one simple movement to lock or release workpiece.
Q2: Can you replace the quick clamp with different clamping force?
A2: Yes, we can select different toggle clamps with varied holding force.
