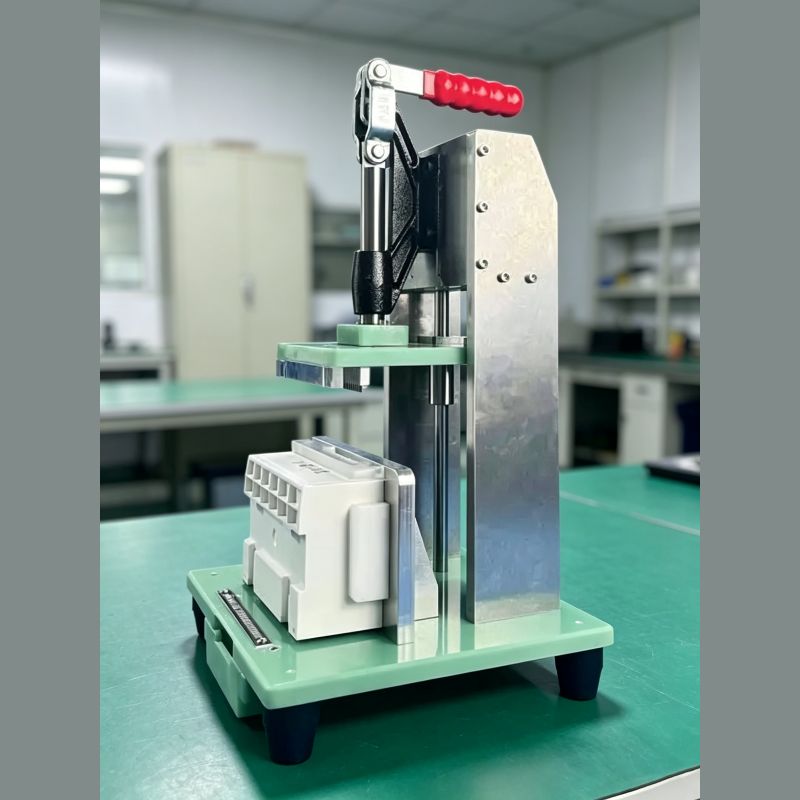

Manual press assembly fixture with quick clamp is used for plastic component pressing and positioning in manual assembly process.
This single station manual press fixture integrates quick clamp positioning and manual pressing head. It is mainly used for pressing plastic components together. Operators place the plastic part into the cavity, lock the quick clamp, then operate the manual press head to finish press fitting. Simple structure, no air source required for small batch plastic assembly.
Key Features
- Single station manual pressing head
- Built-in quick clamp for workpiece positioning
- No air compressor needed
- Compact bench-top design
- Custom cavity for plastic parts
Applications
- Plastic component press assembly
- Small batch plastic part press fitting
- Product prototype assembly test
- Manual bench assembly station
FAQ
Q1: What pressing force can this manual press fixture provide?
A1: We select manual press head according to your required pressing force for plastic parts.
Q2: Can we change the press stroke for different plastic products?
A2: Yes, the stroke of manual press head can be customized as your assembly requirement.
