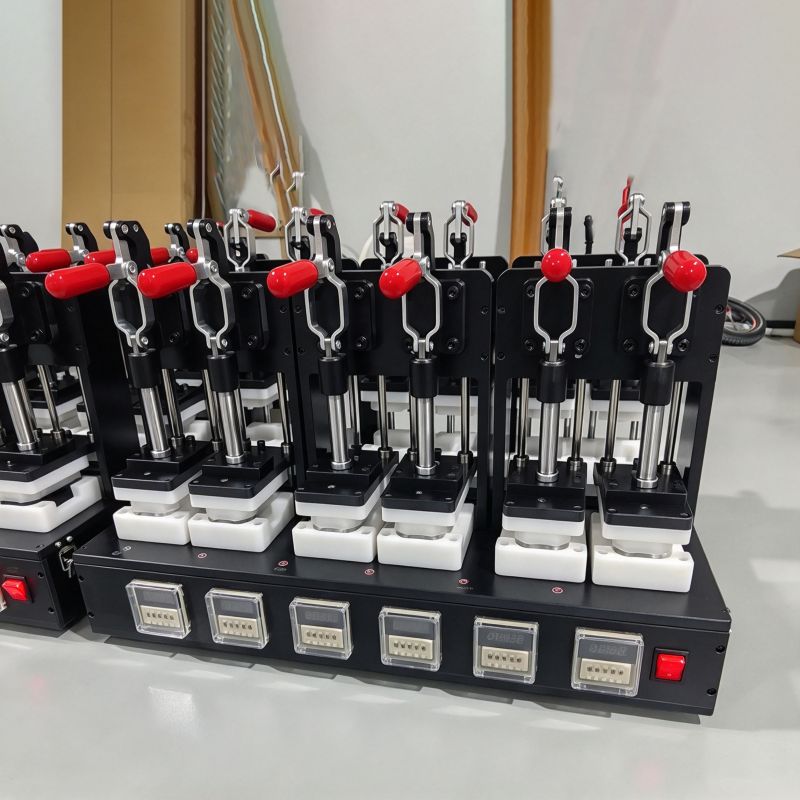

This 6-station manual pressing fixture integrates independent digital timer modules and quick-change nylon cavities, designed for batch pressing, assembly, and cycle-time control of small electronic components in production-line environments.
This multi-station manual pressing fixture adopts a modular layout with 6 independent hand quick clamps and individual digital timers. Each station has separate white nylon customized cavities to hold workpieces, supporting synchronous or independent operation for batch production. The base with power switch controls timing function to record pressing cycle duration, helping operators standardize assembly time and reduce manual operation errors. The frame uses black high-hardness substrate, stable structure, easy to install and replace custom inserts for different small electronic products.
Key Features
- 6 independent working stations for batch simultaneous processing
- Separate digital timer for each station to record pressing cycle
- Custom nylon workpiece cavities, good wear resistance
- Hand quick clamps for fast loading and unloading
- Integrated power control base with emergency stop switch
Applications
- Small electronic component assembly and pressure testing
- Batch pressing for plastic small housings
- Semi-automatic manual assembly on production lines
- Small size product fixture for workshop mass production
FAQ
Q1: Can the timer parameter of each station be adjusted separately?
A1: Yes, every station is equipped with an independent timer module, you can set different pressing time for each workpiece according to your production requirement.
Q2: Is it possible to modify the nylon cavity for different products?
A2: Yes, the nylon inserts are detachable. We can customize new cavity inserts when you change your product, no need to remake the whole fixture frame.
