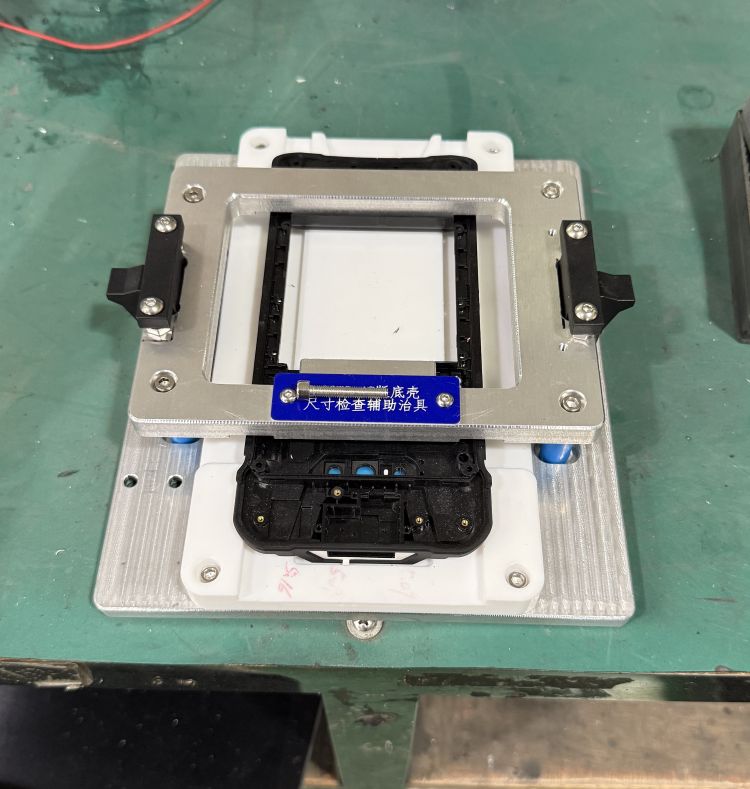

Custom plastic housing dimension inspection fixture locates plastic casings to quickly check dimension tolerance and verify product quality.
This inspection jig is designed for offline dimension checking of plastic housing parts. After placing the plastic casing into the positioning cavity, operators can quickly verify whether the product dimensions are within tolerance range. It reduces slow manual caliper measurement and speeds up QC inspection for mass produced plastic housings. We build go/no-go checking structure according to your drawing tolerance requirements.
Key Features
- Go/no-go quick dimension checking structure
- Precision contour positioning for plastic housing
- Fast QC inspection, reduce manual measuring time
- Hardened base for long-term repeated checking
- Custom cavity following plastic housing 3D drawing
Applications
- Plastic housing incoming QC inspection
- Post-molding dimension verification
- Plastic casing tolerance checking
- Mass production quality sampling inspection
FAQ
Q1: What tolerance level can this inspection fixture verify?
A1: We can build inspection structure according to your required tolerance from your product 3D drawings.
Q2: Can we add multiple checking stations on one inspection jig?
A2: Yes, multiple checking features can be integrated into one fixture for multi-dimension inspection.
