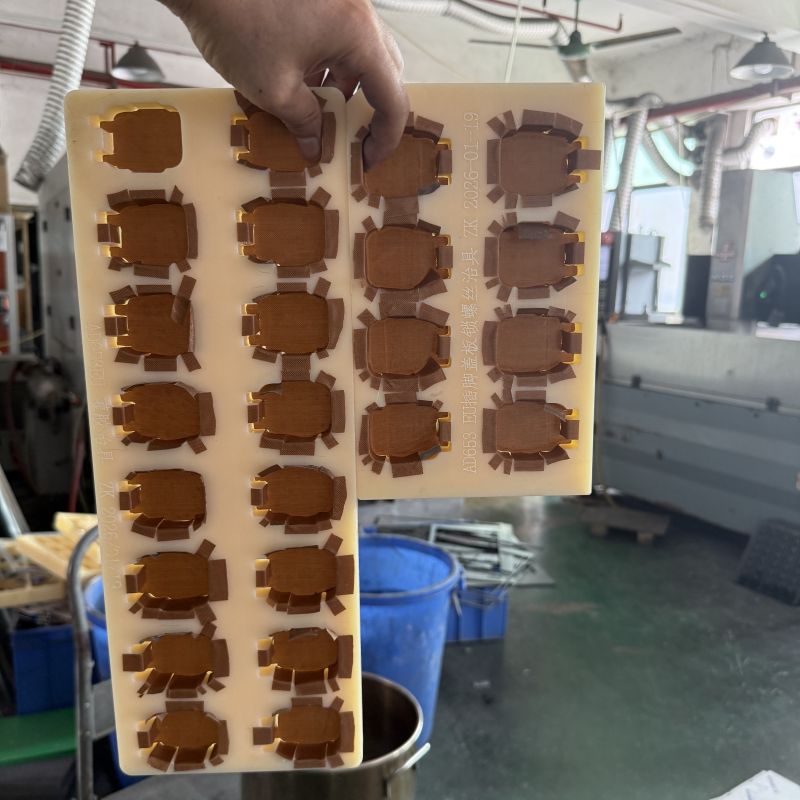

We fabricate custom nylon multi-cavity assembly fixtures for high-volume batch production. It supports automatic screw fastening, product positioning and dispensing processing for electronic assemblies.
This multi-cavity nylon assembly jig is tailor-made for mass batch manufacturing. Nylon material brings good insulation and low wear, suitable for repeated product loading and unloading. Multiple cavities are integrated on one base plate to hold multiple workpieces at the same time, greatly improving production efficiency during screw locking and glue dispensing operations. We customize cavity layout and workpiece contour strictly according to your product drawings.
Key Features
- Multi-cavity design for simultaneous batch processing
- Nylon base with insulation and wear resistance
- Precise workpiece contour positioning
- Custom cavity layout based on your product CAD
- Stable fixture structure for long-cycle production
Applications
- Electronic component batch assembly
- Automated screw fastening process
- Adhesive dispensing & glue dispensing operation
- Small plastic parts mass production
FAQ
Q1: Can you adjust the cavity quantity of this nylon assembly fixture?
A1: Yes, we design the cavity number and arrangement according to your production cycle and workpiece size.
Q2: Is nylon material suitable for high-temperature dispensing environment?
A2: Standard nylon works for normal dispensing temperature; we can switch to modified nylon or POM if higher heat resistance is required.
