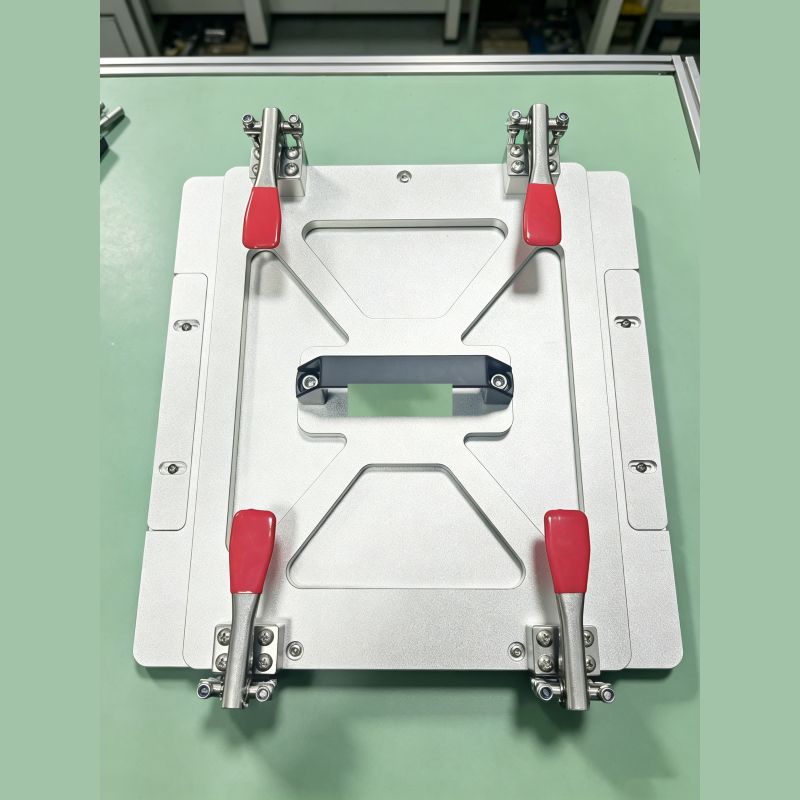

Aluminum plate quick clamp workpiece positioning fixture uses aluminum base plate and toggle clamps to locate large workpieces during manual assembly.
This fixture adopts thick aluminum plate as base, paired with heavy-duty toggle quick clamps. Aluminum base plate has high flatness and rigidity, suitable for relatively larger workpieces. Multiple quick clamps are arranged around the contour to fix the workpiece firmly. It is widely used for manual assembly of medium-size plastic and metal parts.
Key Features
- High flatness thick aluminum base plate
- Heavy duty toggle quick clamps
- Multi-point clamping for large workpiece
- Good rigidity, stable long time use
- Custom clamp layout according workpiece outline
Applications
- Medium size workpiece manual positioning
- Large plastic part assembly
- Metal component manual assembling
- Product prototype and trial run
FAQ
Q1: What is the advantage of aluminum base compared with phenolic plate?
A1: Aluminum plate has better flatness and heat dissipation, suitable for heavier or larger workpieces.
Q2: Can we add locating pins on this aluminum fixture?
A2: Yes, locating pins and stop blocks can be added to improve positioning accuracy.
