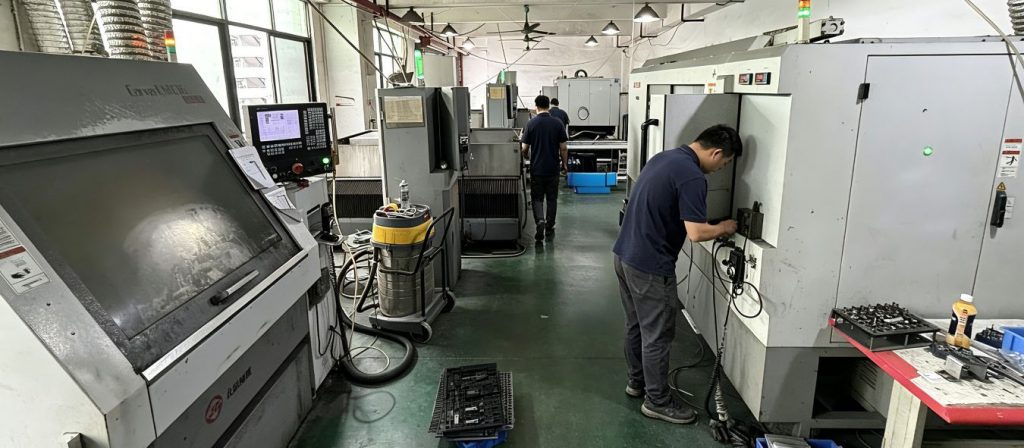

CNC fixture manufacturing workshop, factory workers processing test jigs and tooling fixtures on CNC machining centers

JJQ Custom Fixtures & Jigs

PCB Test Fixtures · Soldering Pallets · Custom Assembly Tooling
In‑house Design & CNC Machining | Electronics Manufacturing Tooling

Custom Jigs & Fixtures Manufacturer in Dongguan

With over 20‑years experience based in Dongguan, China, we custom‑design and manufacture all kinds of fixtures and jigs, covering electronic testing, soldering pallets and general‑purpose assembly tooling.Our professional team handles custom projects thoughtfully. Whether you provide complete drawings or only functional requirements, we deliver high‑precision custom tooling to improve your testing, assembling and production efficiency.We look forward to working with you. Share your specifications to get your tailored solution and quotation.

Our Main Fixture Categories
Custom Test Fixtures, Wave Soldering Pallets & Assembly Tooling

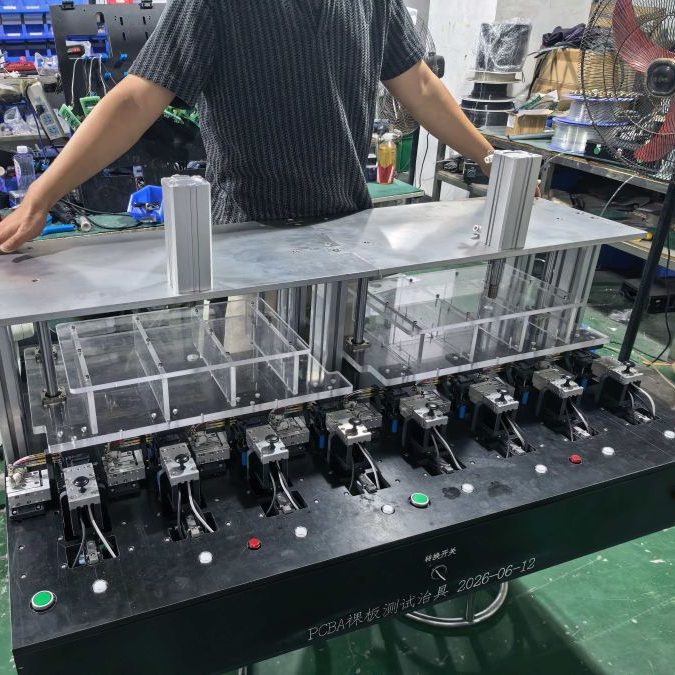

Custom multi‑station electronic test fixture, ICT FCT ATE functional test jig
Test Fixtures
Custom test fixtures for ICT, FCT, ATE, high‑voltage and multi‑station functional testing. Validate electronic product performance and stability in mass‑production.

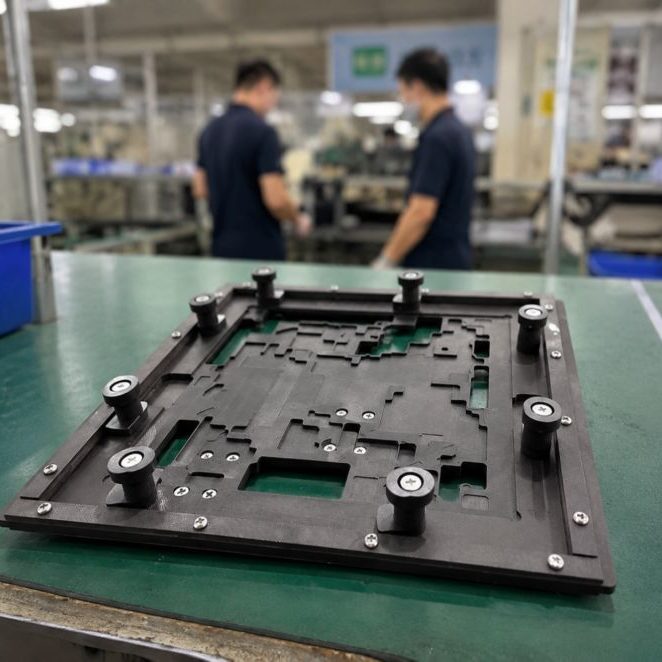

Custom wave solder pallet, SMT carrier DIP fixture for PCBA wave soldering production, manufactured by JJQ
Soldering Fixtures
High‑temperature resistant SMT carriers and DIP wave solder pallets. Protect PCB & PCBA during reflow and wave‑solder mass‑production processes.

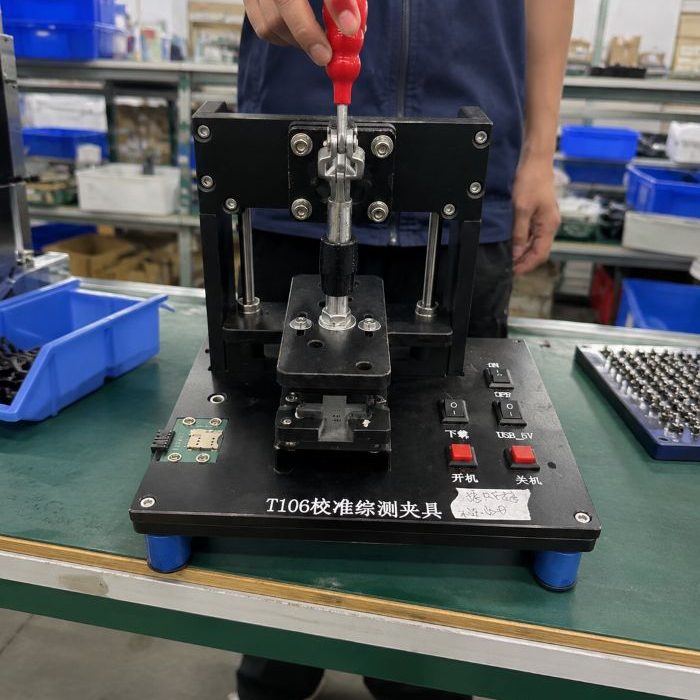

Custom assembly jigs, screwing fixture, laser engraving jig for industrial production
Custom Tooling & Assembly Jigs
General‑purpose custom tooling including calibration, screw‑locking and laser engraving fixtures for electronic product assembly workflows.

About us：
Custom Fixture & Jig Manufacturer | 20 Years Experience
R&D‑driven service, far more than simple drawing‑based manufacturing.
Our core expertise lies in complex test fixtures as well as SMT & wave soldering pallets. Supported by multiple senior designers with 10+‑year experience and 6 CNC machines in‑house, we are capable of high‑end custom projects including burn‑in aging fixtures and 10‑station multi‑position test jigs. We also deliver custom assembly tooling fixtures for varied production needs.
Share your specifications or drawings, and get your tailored solution & quotation.

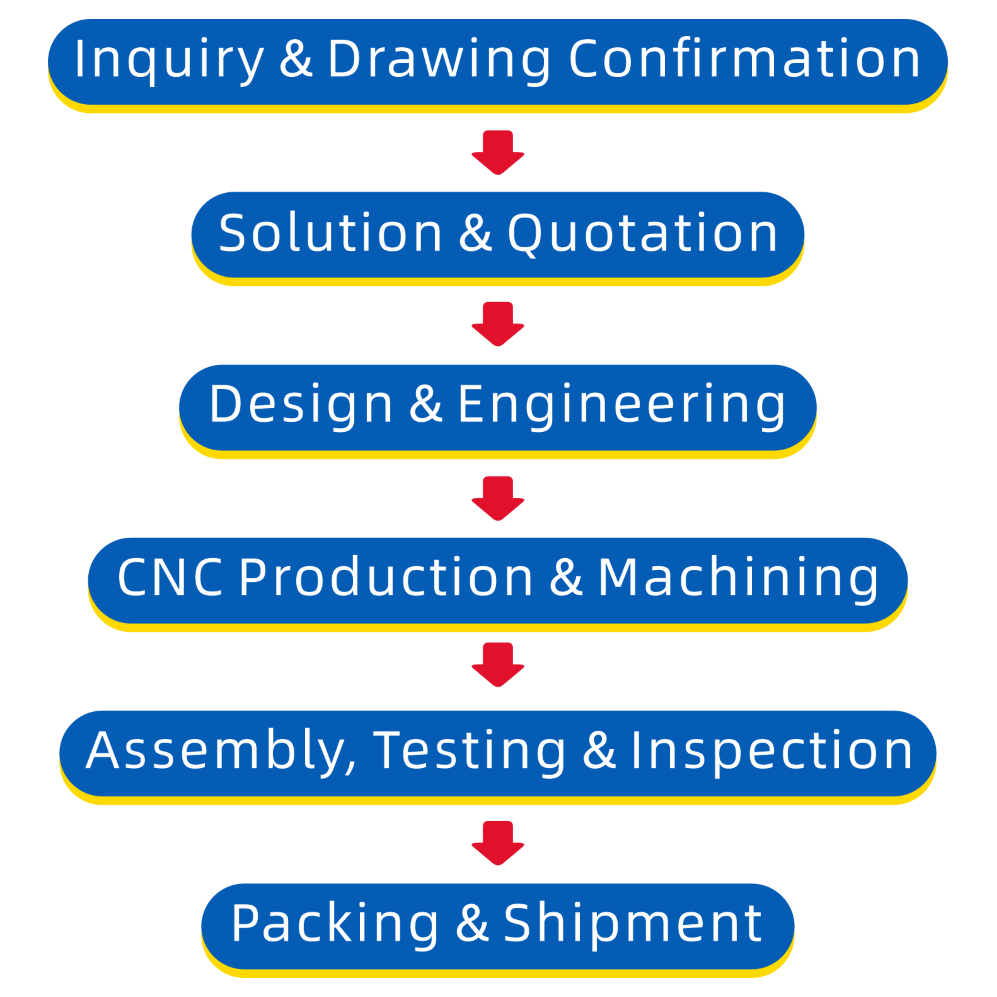

6‑step custom fixture and jig manufacturing order process flow chart

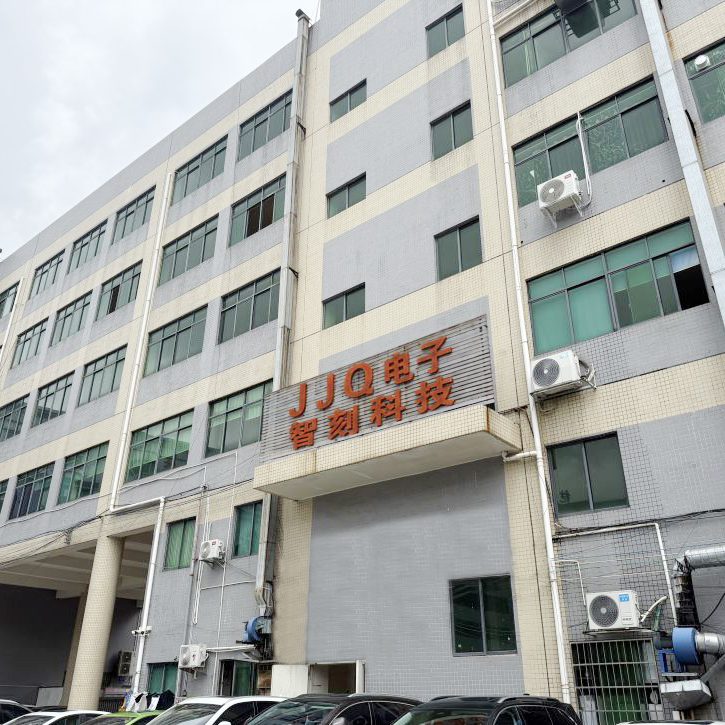

Exterior view of JJQ Electronics factory, professional manufacturer for ATE test fixture, soldering jig and custom tooling

Real‑world projects we manufactured for our clients

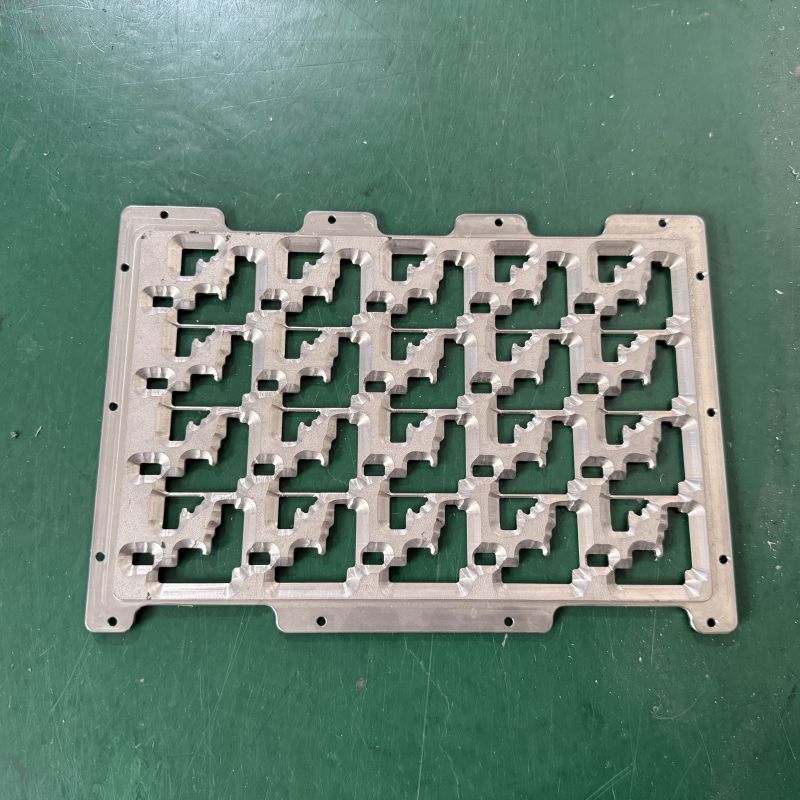

Aluminum Multi‑Cavity PCB Wave Soldering Fixture

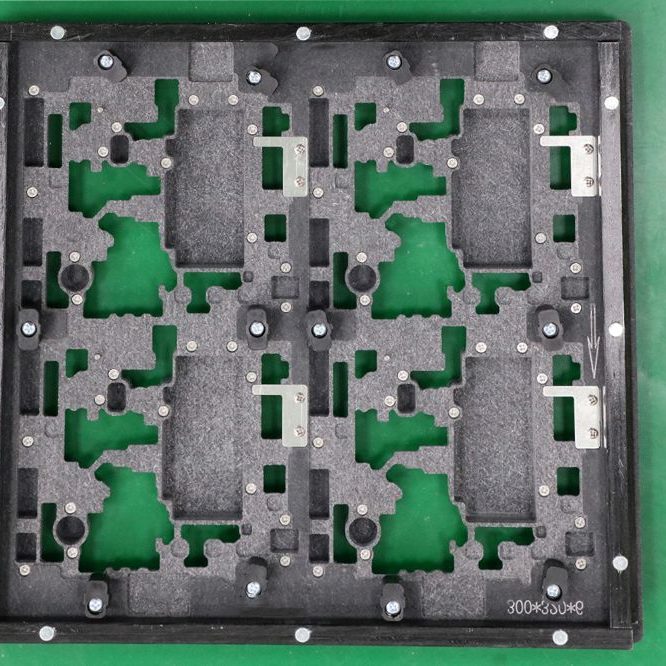

Multi‑cavity pcb wave soldering fixture, high temp resistant carrier for circuit board reflow soldering production
Multi‑cavity PCB Reflow Wave Soldering Fixture

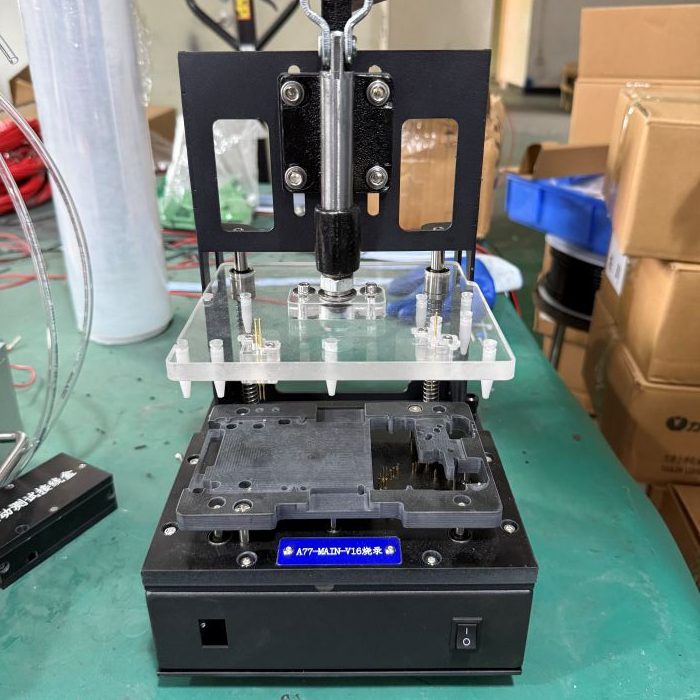

Quick clamp PCB functional test fixture, custom test jig for printed circuit board function checking
Quick Clamp PCB Functional Test Fixture

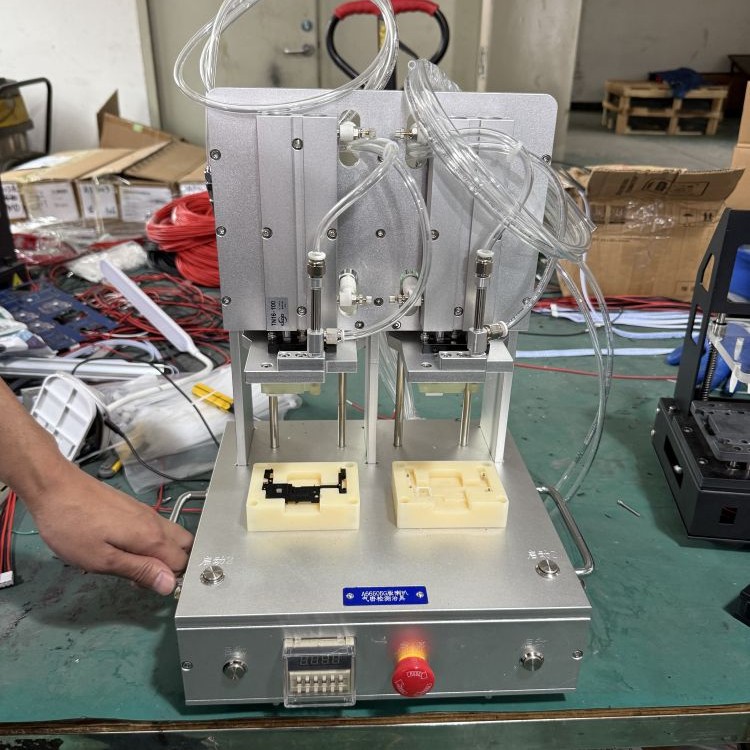

Dual‑station pneumatic pressing fixture, workshop equipment for electronic component pressing and assembly processing
Dual‑Station Pneumatic Pressing Assembly Fixture

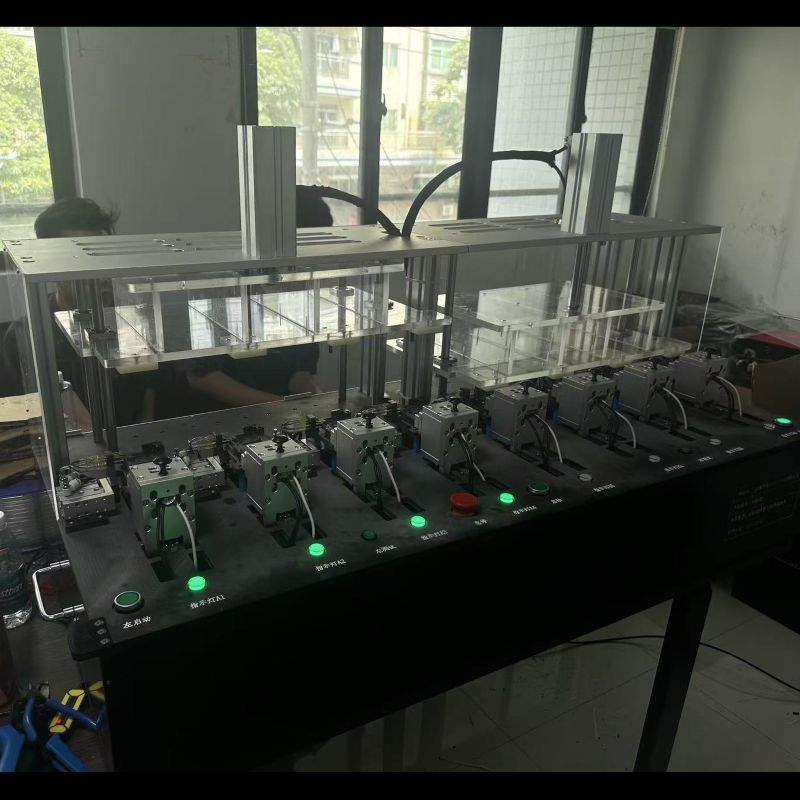

Multi‑station pneumatic ICT test fixture, mass production test station for simultaneous PCB circuit testing
Multi‑station Pneumatic ICT Test Fixture

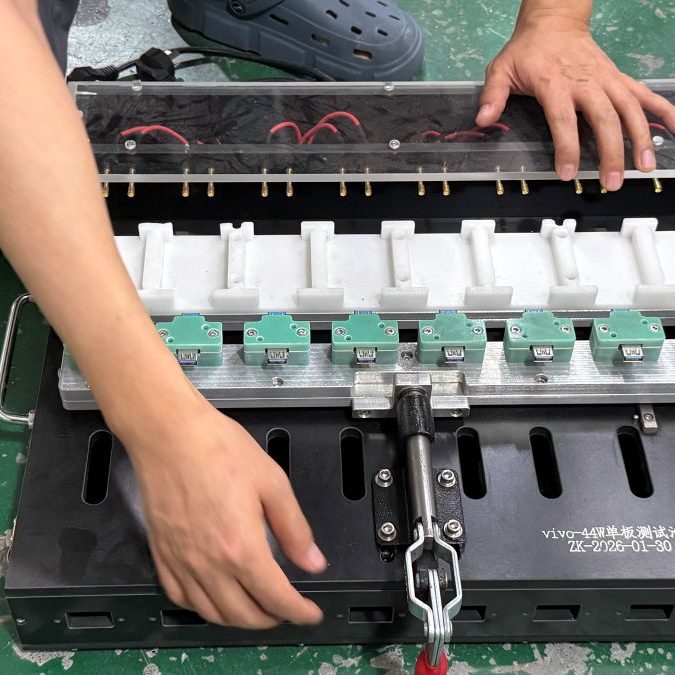

Multi‑station quick clamp test fixture, workshop scene for mass power board function performance testing
Multi‑Station Quick‑Clamp Power Board Test Fixture

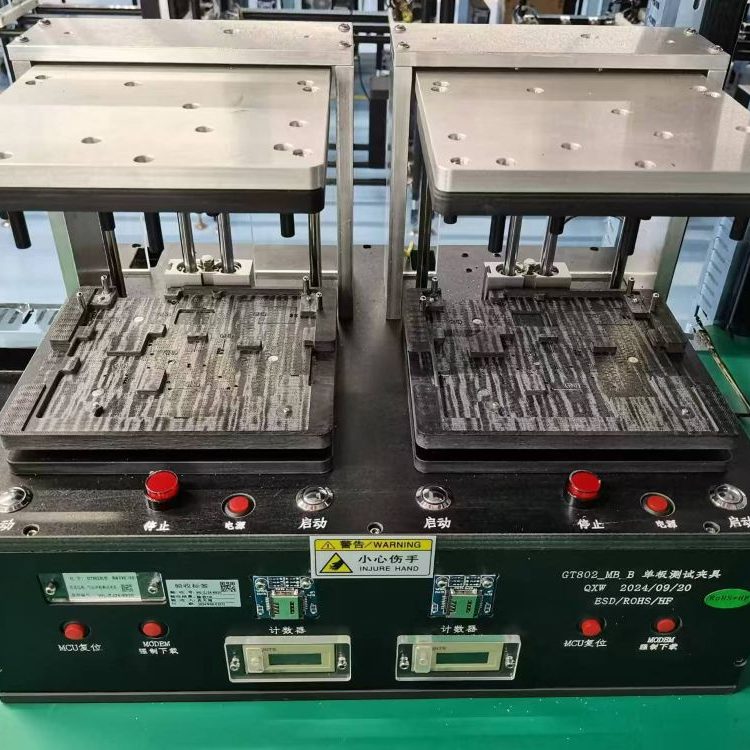

Dual‑station pneumatic PCB mainboard test fixture, customized test jig for simultaneous circuit board function inspection
Dual‑Station Pneumatic PCB Mainboard Test Fixture

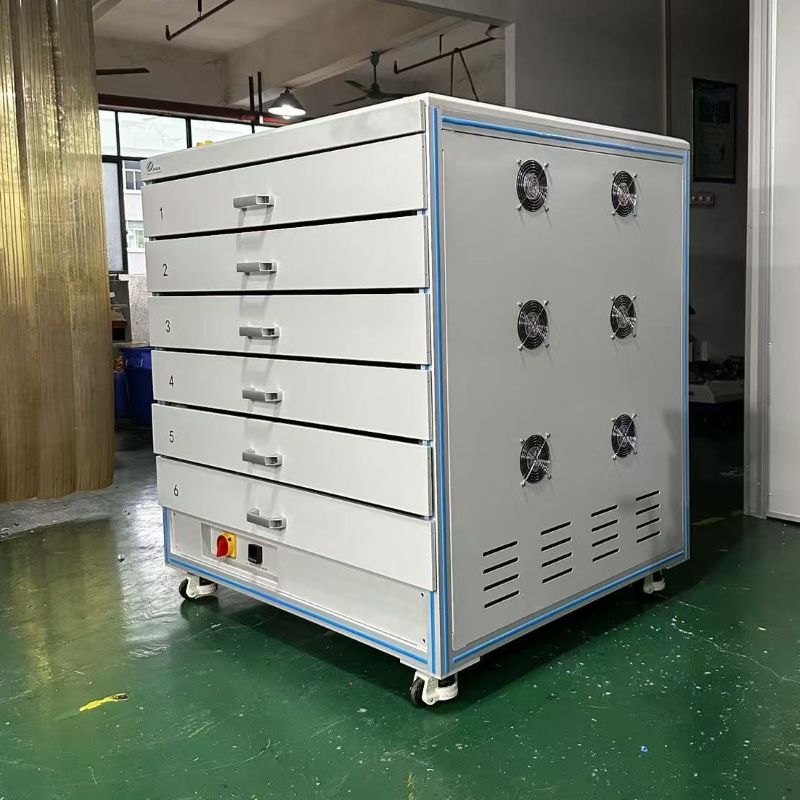

Multi drawer electronic aging test cabinet, factory burn‑in test equipment for electronic product endurance performance testing
Multi‑Drawer Electronic Aging Test Cabinet

Contact Us
Get In Touch
Email: ben@jjqfixture.com
WhatsApp: +86 18125673310 ｜ Chat with us on WhatsApp
Company Address: Liaobu Town, Dongguan City, Guangdong Province, 523400, China
We will reply you within 24 working hours.
