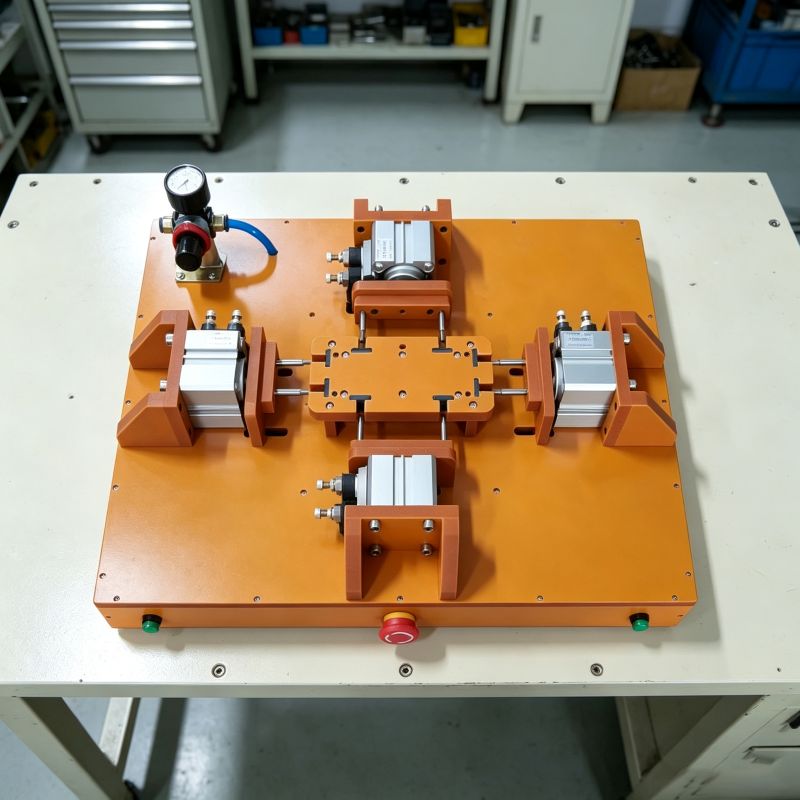

Multi-directional pneumatic clamping & positioning fixture uses pneumatic cylinders from multiple directions to clamp and fix workpiece for stable assembly.
This multi-direction pneumatic clamping jig uses air cylinders from different axes to lock workpiece tightly. Compared with single-side clamping, multi-direction clamping avoids workpiece shifting or tilting during assembly. It is widely used when product needs full constraint from multiple sides during assembling. We customize clamping stroke and force based on workpiece size.
Key Features
- Multi-axis pneumatic clamping design
- Uniform workpiece holding force
- Prevent workpiece tilting or offset
- Adjustable cylinder clamping stroke
- Strong rigid fixture frame
Applications
- Multi-side clamping assembly process
- Workpieces requiring full constraint
- Plastic housing assembly
- Electronic component assembling
FAQ
Q1: Can we set independent control for each pneumatic cylinder?
A1: Yes, each cylinder can be controlled separately with individual pneumatic circuit.
Q2: What is the maximum clamping stroke you can customize?
A2: We select cylinder stroke according to your workpiece size and clamping travel requirement.
