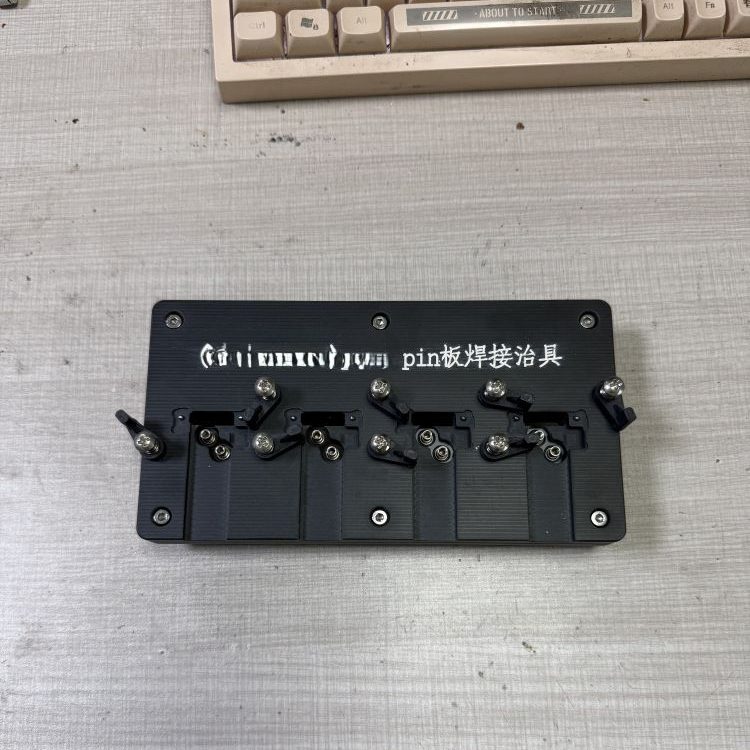

Our custom pogo pin board soldering fixture precisely clamps PCB boards and holds position during pogo pin soldering and assembly.
This pogo pin soldering jig is dedicated for PCB board positioning in pogo pin soldering processes. It fixes the PCB flat and stable to prevent shifting during soldering, ensuring consistent soldering quality. The fixture contour is fully customized matching your PCB outline. We reserve enough space for soldering operation and avoid damage to PCB traces.
Key Features
- Precise PCB contour positioning
- Stable clamping to prevent board movement
- Reserved operation space for soldering work
- Anti-scratch protection for PCB surface
- Custom cutout matching PCB outline
Applications
- Pogo pin soldering on printed circuit boards
- PCB manual soldering assembly
- Small circuit board soldering and inspection
- Electronic module pogo pin assembly
FAQ
Q1: Can this fixture support double-sided PCB soldering?
A1: Yes, we can design flip structure or open window design for double-sided soldering requirements.
Q2: Will the fixture scratch PCB copper surface?
A2: We add soft insulation gaskets on contact areas to protect PCB surface from scratches.
