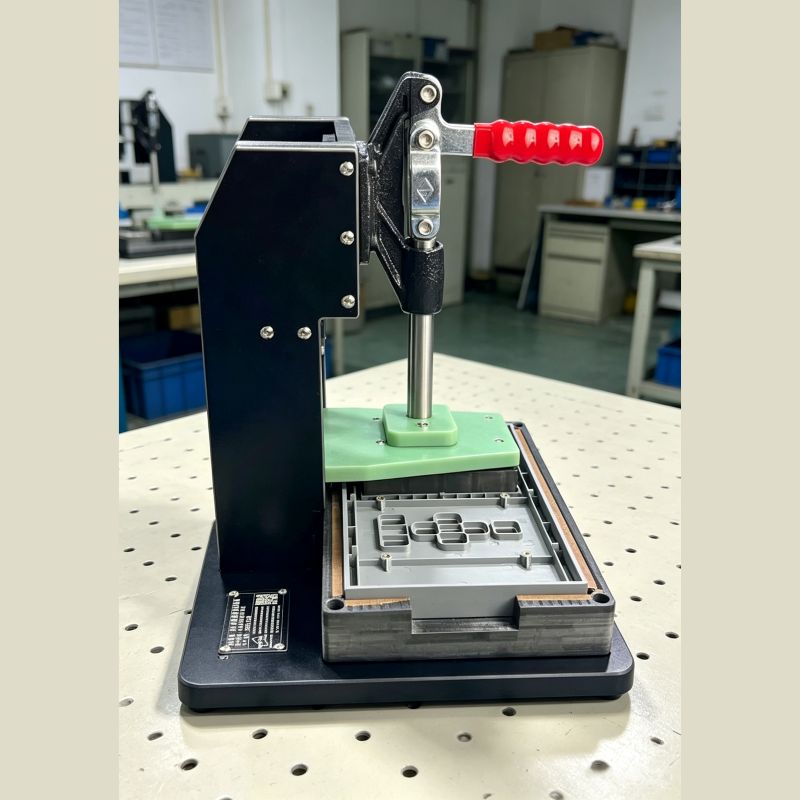

This manual four-cavity plastic parts press assembly fixture is built for four plastic components press fitting in one manual cycle. It helps factories finish batch plastic assembly with stable pressure and no air source required.
This four-cavity manual press jig is specially optimized for plastic components. Four cavities are designed for plastic workpieces only. Operators load four plastic parts at once and complete pressing in one cycle. The fixture material is selected to avoid scratching plastic surface. It is designed for medium-volume plastic parts assembly, different from universal four-station jig for mixed workpieces.
Key Features
The manual four-cavity plastic parts press assembly fixture combines four-cavity positioning with a simple manual pressing action. Operators can load four plastic parts, press once, and complete the assembly sequence without additional adjustment.
- Four cavities dedicated for plastic parts
- Anti-scratch protection for plastic surface
- One-cycle manual pressing
- Compact and robust design
- Optimized for plastic housing assembly
Applications
- Plastic components batch press fitting
- Plastic shell assembly
- Medium-volume plastic product production
- Plastic part prototype mass trial
- See more custom tooling jigs on our product category page.
FAQ
Q1: Is this fixture only for plastic parts?
A1: Yes, cavity and contact surface are optimized specially for plastic workpiece protection.
Q2: Can we adjust the depth of pressing for plastic parts?
A2: We add limit block to control pressing depth precisely for plastic assembly.
This product belongs to our manual assembly tooling range. For more press fixtures and custom assembly solutions, please visit our tooling jigs category page.
