Manual four-station press assembly fixture uses manual pressing structure for multi-workpiece positioning, assembly and press fitting on production line.

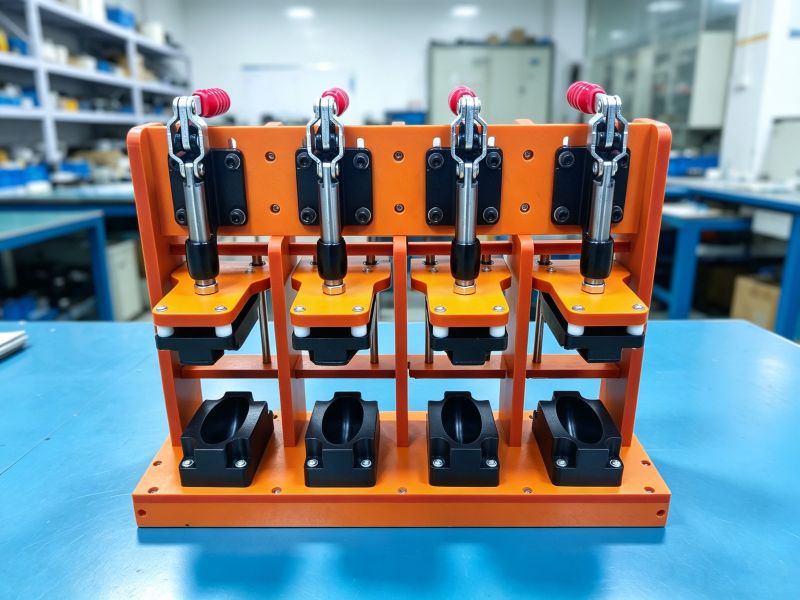

This four-station manual press jig allows operators to process four workpieces in one cycle. Manual pressing structure needs no air source, suitable for workshops without pneumatic supply. The fixture base uses high insulation material, each station has independent positioning cavity, ideal for low to medium volume assembly tasks.
Key Features
- Four independent working stations
- Manual operation, no compressed air required
- Separate positioning cavity for each workpiece
- Insulation base plate
- Simple operation and low maintenance
Applications
- Medium volume product assembly
- Manual press fitting operation
- Small batch electronic parts assembly
- Workshops without pneumatic pipeline
FAQ
Q1: Does this four-station manual fixture need air compressor?
A1: No, it works fully manually, no air source required.
Q2: Can each station be customized for different workpieces?
A2: Yes, we can design different cavity shape for each station upon request.
