Custom PCBA programming jigs and fixtures for PCB firmware burning. Manual quick clamp design, compatible with USB, RS232 interfaces. Suitable for prototype and small-batch IC programming for electronics manufacturers across Southeast Asia.

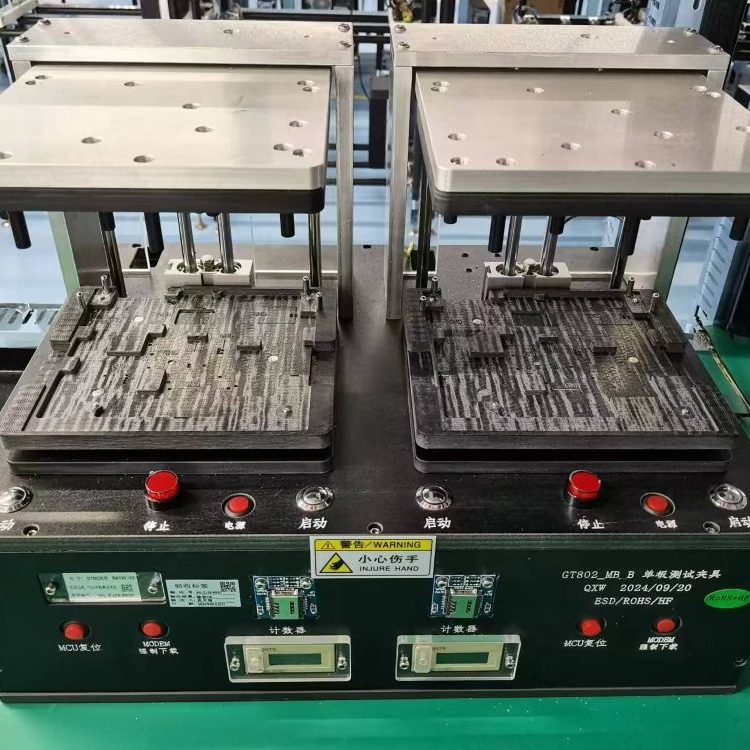

Dual‑board simultaneous firmware burning jig, mass‑production MCU program download fixture for SMT post‑process testing

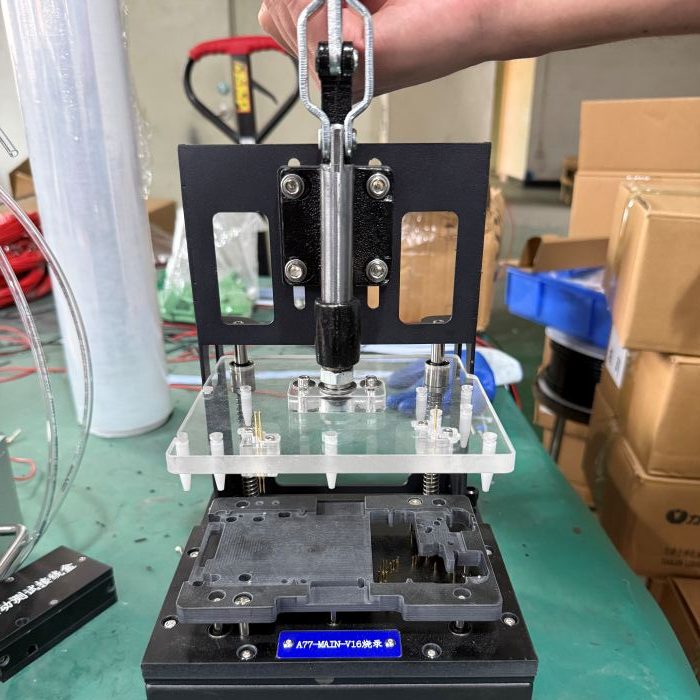

Hand‑operated pogo‑pin burning jig, low‑cost custom PCBA programming fixture without air source required

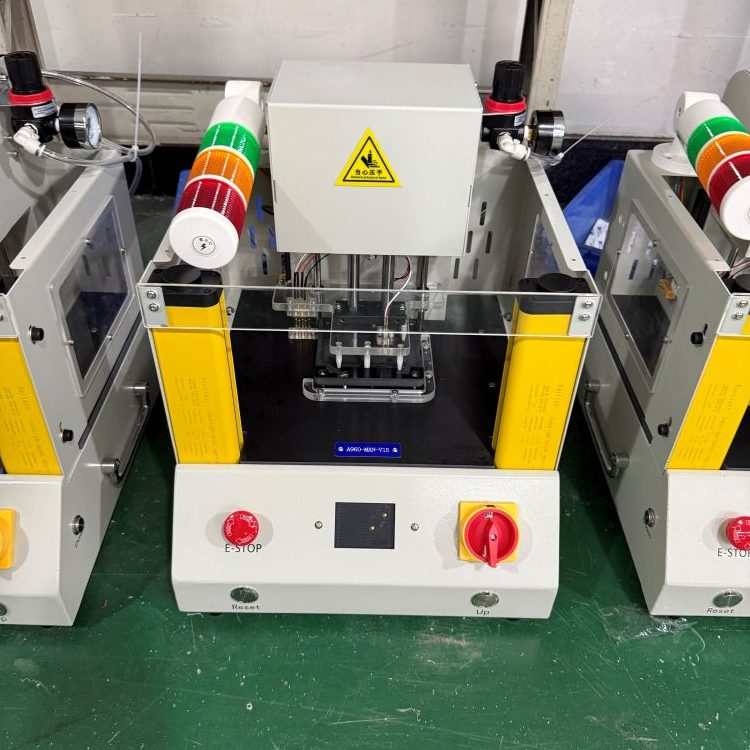

Operator‑safe PCB firmware download jig, heavy‑duty pneumatic burning fixture for volume electronic assembly

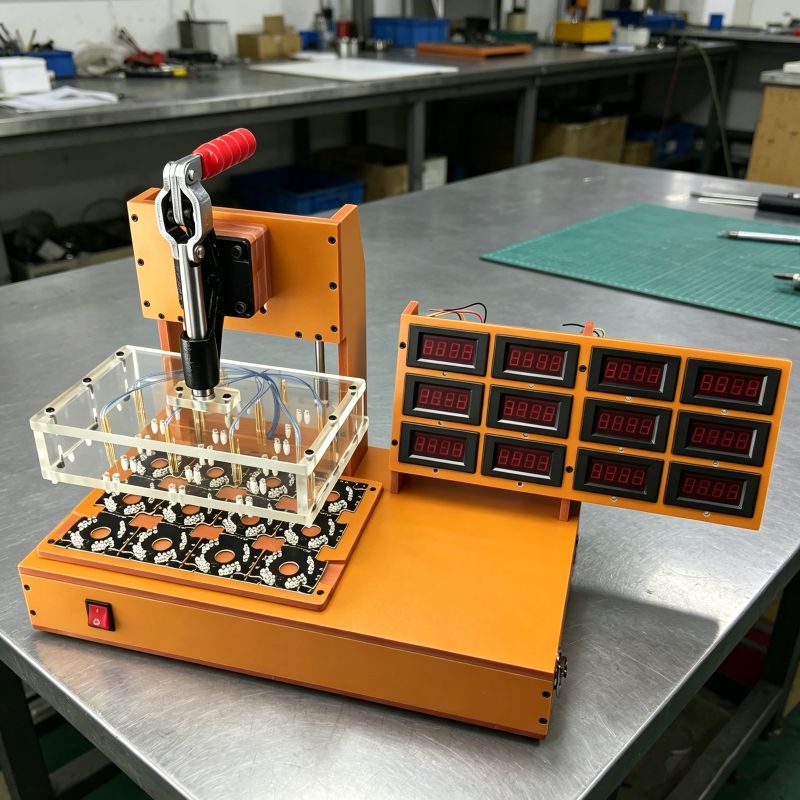

All‑in‑one burning‑and‑reading jig, multi‑pcs PCB simultaneous programming fixture with real‑time digital value display

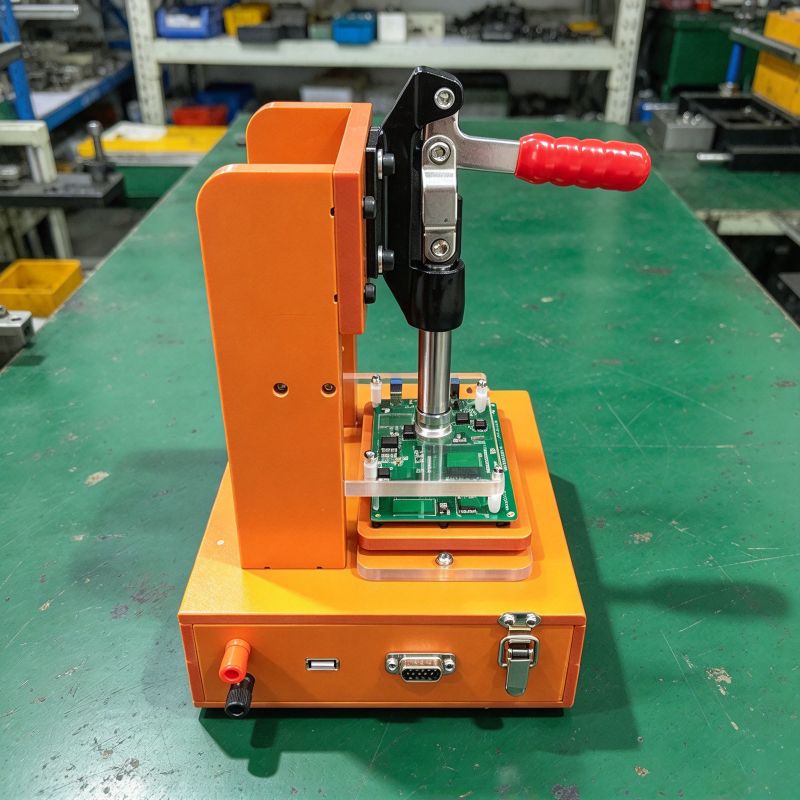

Compact manual PCB firmware download fixture, USB‑RS232 interface burning jig for R&D sample programming
Our custom PCBA programming jigs (also known as burn test fixtures) are built for stable PCB positioning and reliable IC firmware programming. Made with bakelite base and quick-release toggle clamps, these jigs are widely used for SMT post-production firmware downloading.
Each programming fixture is fully customizable according to your Gerber file and PCB layout. We support different interface options including USB, RS232 and pin board modification.
These manual programming jigs are cost-effective solutions for prototype validation and low-to-medium volume production. Compared with automated programming stations, they bring lower upfront investment and faster delivery for small electronics factories.
Our programming jigs share mature mechanical structures similar to FCT test fixtures, ensuring stable pressure and precise positioning during the burning process.
Key Features
- Custom bakelite base & quick toggle clamp for fast PCB loading and unloading
- Accurate positioning pins to fix PCBA board during firmware programming
- Support multiple communication interfaces: USB, RS232 as requested
- Custom probe layout, tailored to your PCB and IC chip definition
- Compatible with most mainstream IC programmers
- Durable mechanical structure, easy maintenance for daily workshop use
- Manual operation, ideal for prototype & small batch production
Applications
- PCBA SMT post-process IC firmware burning
- Electronic prototype verification & R&D lab programming
- Small batch consumer electronics production
- Printed circuit board offline programming test
- Southeast Asia electronics manufacturing & PCB assembly factories
分割线（页面编辑器直接插入分割线组件）
FAQ
Q1: What is the difference between programming jig and FCT test fixture?
A: FCT fixture focuses on functional testing of assembled PCBA. Programming jig is specially designed for IC firmware burning. Some structures can be combined into one integrated fixture for both test and programming.
Q2: Can you customize the programming jig based on my PCB Gerber file?
A: Yes. We need your PCB Gerber, board thickness and programming pin definition to design the custom jig.
Q3: Is manual programming jig suitable for mass production?
A: Manual quick clamp programming jigs are best for prototype and small & medium batch orders. For high volume mass production, we recommend multi-station automatic programming fixtures.
Q4: What interfaces can be supported on your burn fixture?
A: We can build fixtures with USB, RS232 and other custom interfaces matching your programmer equipment.
Q5: Do programming jigs share the same material with FCT test fixtures?
A: Yes. We normally use bakelite (phenolic board) as base material, same as standard FCT test jigs.
