FCT Test Fixture for PCBA Functional Testing

FCT test fixture is the core customized test tool for PCBA and electronic module mass production in SMT industry. As the standard naming for European and American markets, FCT test fixture focuses on full functional verification of finished circuit boards. In Southeast Asian manufacturing factories including Vietnam, Thailand and Malaysia, this industrial test equipment is universally called test jig. Our custom FCT test fixture supports standard PCBA functional testing and optional firmware uploading, IC programming and chip burning functions. Equipped with manual quick-clamp and pneumatic automatic pressing structures, it meets diverse production demands from small-batch proofing to large-scale mass production.

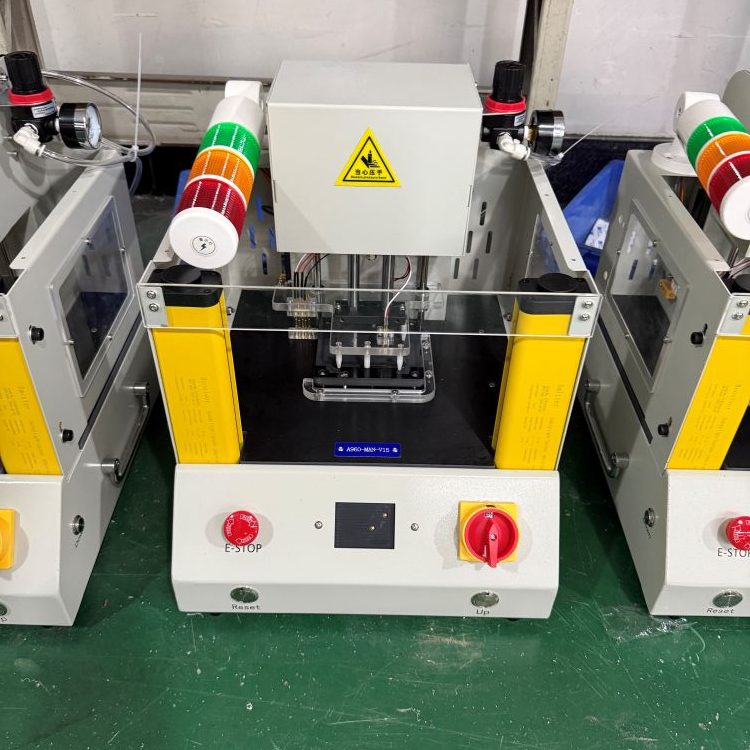

Pneumatic FCT functional test fixture with red-yellow-green signal tower, transparent safety shield, emergency stop and reset buttons for PCBA testing
Tower-Light Pneumatic FCT Test Fixture
Air-driven functional tester with status indicator lamp and protective guard, designed for automated PCB assembly line pass/fail inspection

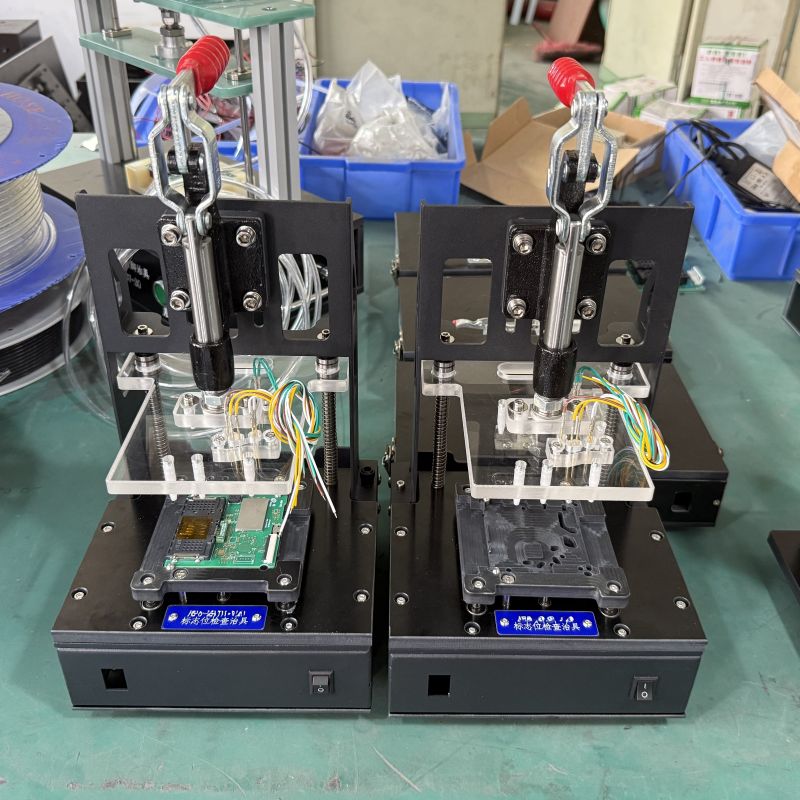

Two independent single station manual FCT test jigs side by side, hand toggle clamp type for PCB function inspection
Single-Station Manual FCT Test Jigs (Side by Side)
Separate toggle clamp FCT fixtures for individual PCB functional testing, flexible independent operation
Full unit CAC FCT functional test fixture, large platform with spring probe modules, counter and emergency stop button
Full Assembly CAC FCT Test Fixture
Custom FCT jig for complete electronic product assembly testing, with safety interlock & production counter
Bakelite frame manual FCT test jig, hand toggle clamp for PCBA board functional circuit testing
Bakelite Manual FCT Test Jig
Economical toggle clamp FCT fixture, built with phenolic laminate for stable PCBA contact testing
Stainless steel semi-finished product test fixture, multiple spring probes, green PASS red FAIL buttons and digital counter for partial assembly functional check
Semi-Finished Product FCT Test Fixture
Metal-bodied jig for in-process semi-finished assembly testing, with pass/fail indicator and production counter to track yield before final product assembly
Floor-standing enclosed cabinet coupling test fixture, multi-station internal probe jigs, touch screen, status tower and safety door for electronic module coupling inspection
Cabinet Coupling Test Fixture
Full-size cabinet-type coupling tester with multi-position internal stations, used for wireless/electronic module coupling performance verification in mass production QC

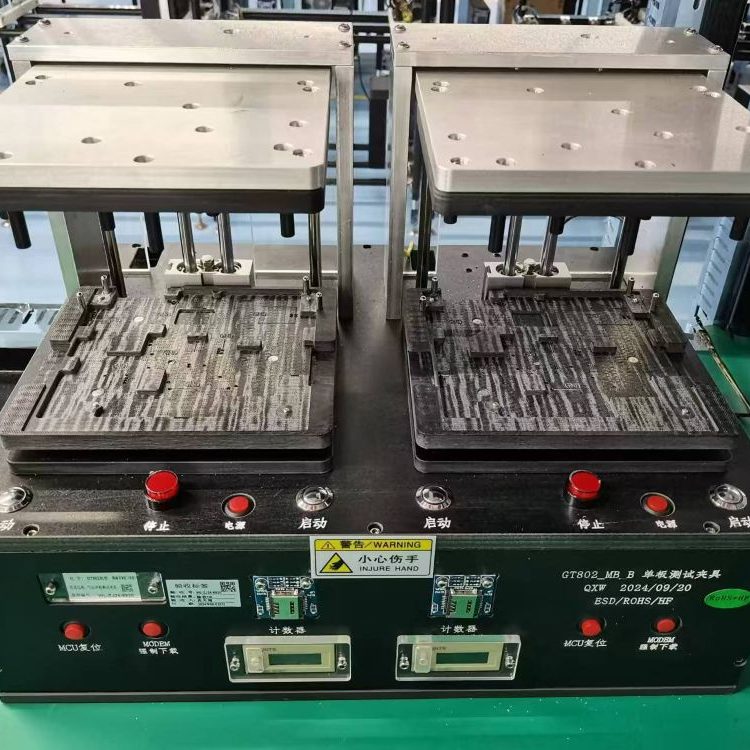

Dual station pneumatic FCT test fixture for plastic electronic assemblies, dual independent test cavities
Dual-Station Pneumatic FCT Test Fixture
Double cavity air-powered FCT jig for plastic electronic modules, built-in counter and emergency stop switch
Compact manual toggle clamp test fixture for magnetic card reader head, side-loading slot and flexible probe pins on black bakelite base
Magnetic Head Card Swipe Test Jig
Custom small benchtop jig dedicated to card reader magnetic head functional verification, with latch lock and signal wiring for swipe performance testing
Five-station manual toggle clamp FCT test fixture array with digital display for batch PCB testing
5-Station Manual FCT Test Fixture Bank
Multi-cavity manual FCT test station with 5 independent test positions, digital readout for mass production PCB batch test

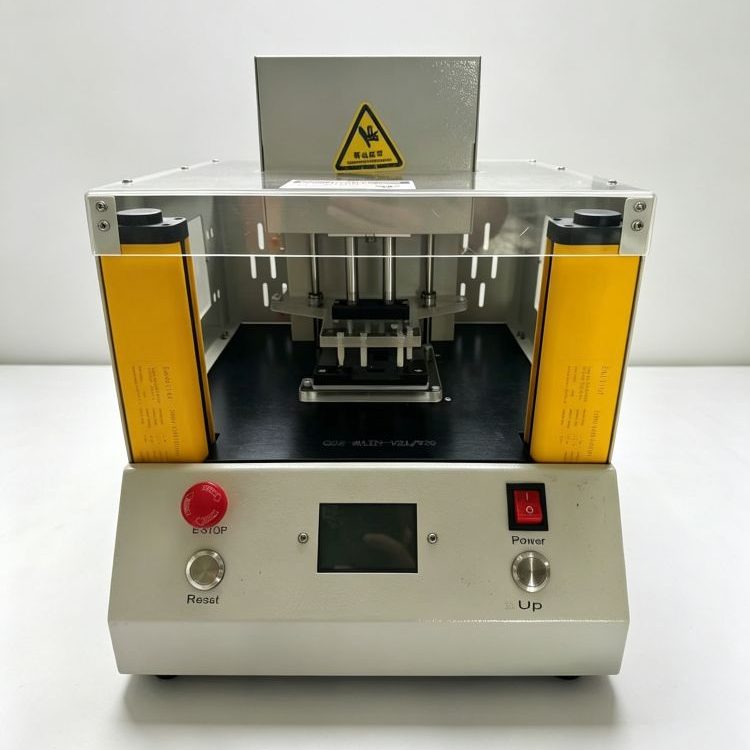

Pneumatic FCT test machine equipped with safety light curtains, protective acrylic cover for industrial PCBA testing
Safety Light Curtain FCT Test Machine
Safety-enhanced pneumatic FCT tester with light barrier protection for high-volume electronics production

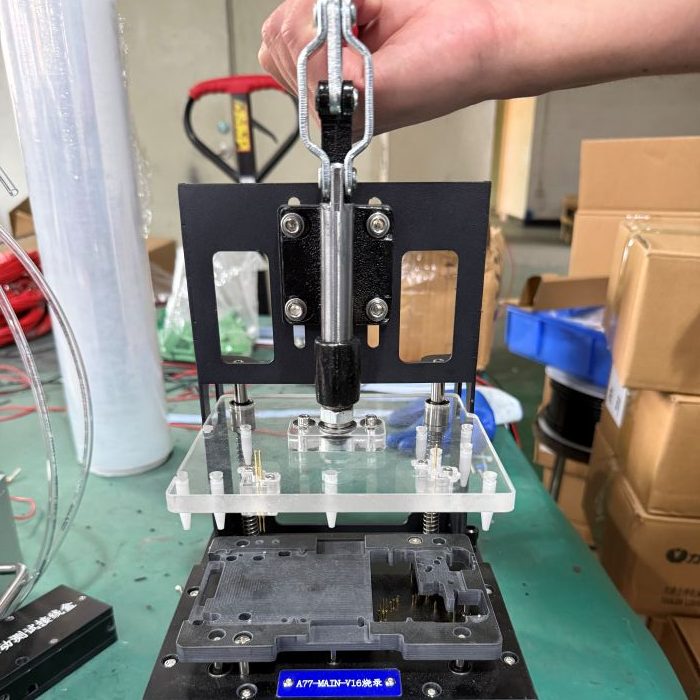

Vertical manual toggle clamp MB bare board test fixture, multi-pin probe array, discharge button and green start switches for motherboard circuit validation
Bare Motherboard Manual FCT Test Jig
Frame-style hand-operated jig built for bare MB board functional testing, transparent press plate aligns probes evenly across the bare PCB surface
Pneumatic FCT test fixture with multi test probes, touch screen control panel for PCB array testing
Pneumatic Multi-Probe FCT Tester
Automated air-driven FCT jig for multi-PCB simultaneous functional inspection on production line
Vertical structure pneumatic FCT test jig, phenolic base with start/stop buttons for circuit board function test
Vertical Pneumatic FCT Test Jig
Compact vertical air cylinder FCT fixture, designed for limited workspace PCB functional testing
Dual station pneumatic FCT test fixture with touch screen control panel for electronics production line
Dual-Cavity Pneumatic FCT Jig with Touchscreen
Double position air-operated FCT functional tester integrated HMI touch panel for fast dual-piece PCBA testing

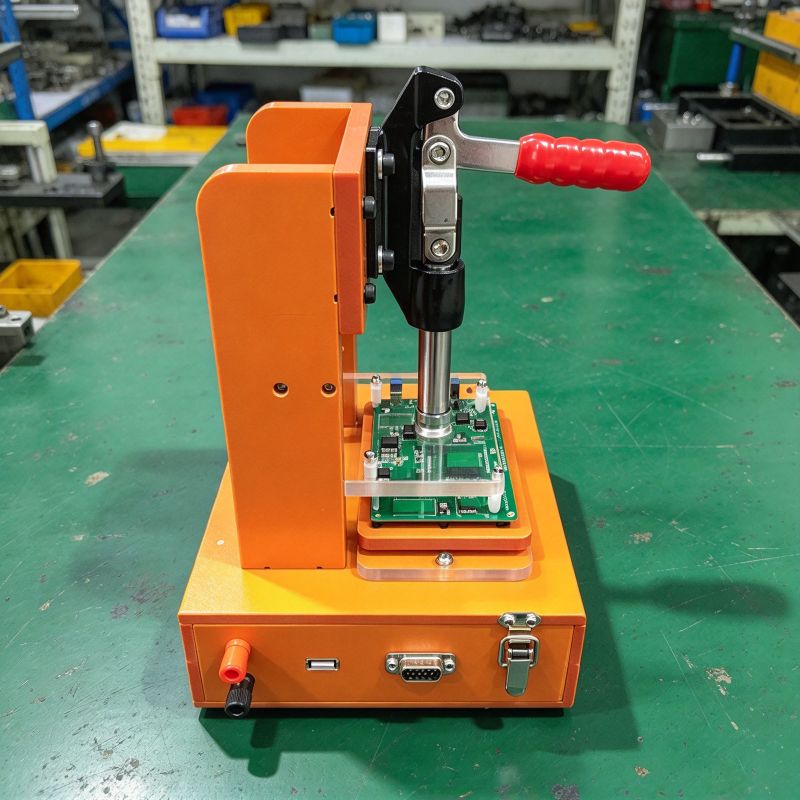

Single station quick toggle clamp FCT functional test jig for printed circuit board function test
Single Station Toggle Clamp FCT Test Jig
Compact manual FCT test fixture with quick-release handle, custom pogo pin layout for small PCBA boards

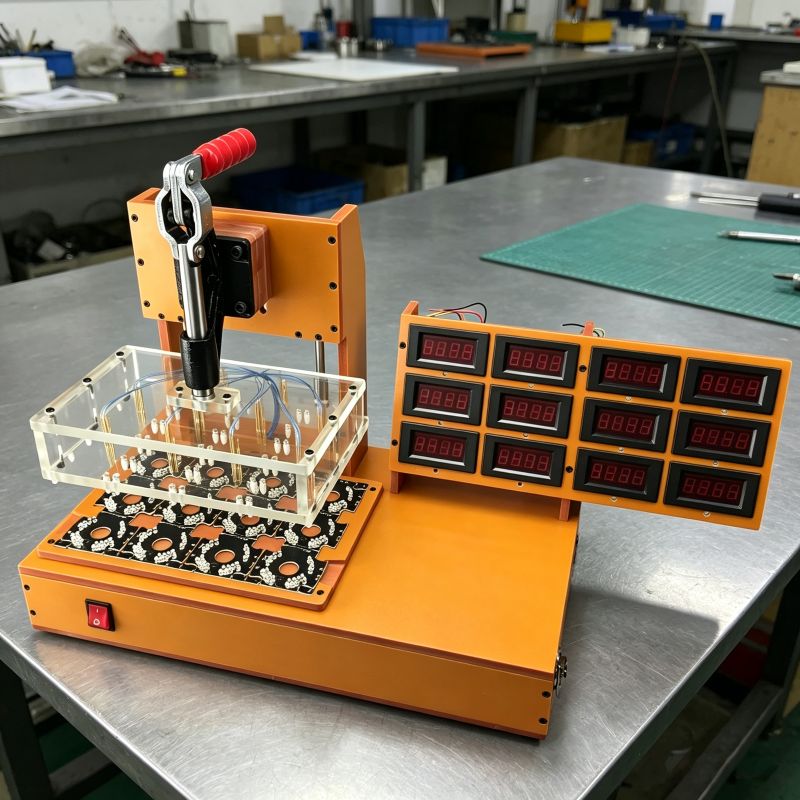

Triple station FCT test fixture with digital display meters, three independent test channels for batch electronics testing
Triple-Station Digital FCT Test Jig
Multi-channel FCT fixture with real-time digital readouts, three independent test stations for mass production QC
Multi-probe pneumatic FCT test fixture, multiple test needles for PCBA function inspection
Multi-Probe Pneumatic FCT Test Fixture
Custom air cylinder driven FCT jig with multi-point test probes for rapid PCBA functional verification
Top view of bakelite FCT functional fixture with hand quick clamp, acrylic pressure plate for PCBA circuit test
Top Load Manual FCT Functional Fixture
Top-down clamping FCT jig, acrylic press plate ensures uniform probe contact on assembled PCBA
4-station manual FCT test fixture array with transparent probe housing for electronics mass inspection
4-Station Manual FCT Test Fixture Array
Four-position batch FCT test jig with toggle clamps, modular probe assembly for simultaneous multi-unit testing
Gantry type heavy-duty pneumatic FCT functional test fixture for large size PCBA boards
Gantry Pneumatic FCT Test Fixture
Frame-style pneumatic FCT tester with gantry structure, dual-hand safety start for big circuit board functional testing

Our custom FCT test fixture (test jig) adopts industrial-grade high-rigidity bakelite base, precision metal positioning pins and high-stability spring probes, ensuring accurate positioning, stable contact and repeatable test results. The whole structure is optimized for long-term high-frequency operation of SMT production lines, effectively avoiding test deviation, false testing and missing testing. Whether you need single-station conventional test fixture or high-efficiency multi-station test jig, we can complete full personalized customization according to customer PCBA size, test point distribution, functional test standards and on-site production process requirements. The optional built-in programming module realizes integrated testing and burning functions, greatly improving the overall production efficiency of electronic manufacturing.

Key Features

  • Standard full functional test: Professional FCT test fixture design, covering PCBA power-on test, circuit conduction detection, component performance verification and overall functional judgment, fully compliant with international SMT manufacturing standards.
  • Integrated optional programming function: On the basis of complete functional test, the test jig can be upgraded with firmware flashing and IC burning modules, realizing one-piece dual-purpose of testing and programming, saving independent programming tool costs for manufacturers.
  • Dual structural customization: Support manual quick-clamp test fixture for flexible small-batch production and pneumatic automatic test jig for high-speed mass production, adapting to different production efficiency and budget requirements of Southeast Asian factories.
  • High test accuracy and stability: Matched with high-precision industrial spring probes, the FCT test fixture maintains stable contact pressure and accurate test data, with low failure rate in long-term continuous mass production.
  • Durable industrial structure: Wear-resistant bakelite and reinforced metal positioning components are adopted, with strong compression resistance and fatigue resistance, ensuring long service life of the test jig in daily high-frequency production.
  • Humanized operation design: Optimized opening and closing structure, simple and labor-saving operation, effectively reducing manual operation errors and improving workshop overall production efficiency.

Applications

  • Functional testing and auxiliary firmware programming of consumer electronics PCBA boards with custom FCT test fixture
  • Performance detection and batch testing of smart home modules, Bluetooth modules, sensor modules and other small electronic modules using professional test jig
  • Functional verification and quality screening of automotive electronic circuit boards and industrial control boards
  • Stable functional test support for communication equipment PCBAs in SMT mass production lines
  • Custom FCT test jig solutions for product proofing, small-batch trial production and large-scale electronic mass manufacturing

FAQ

1. What is the difference between FCT test fixture and test jig? Both devices are identical in functional application, dedicated to PCBA functional testing. FCT test fixture is the official standard term for European and American markets, while test jig is the mainstream common name widely used in Southeast Asian SMT manufacturing industries. Our customized equipment supports optional IC programming function on the basis of standard functional test, adapting to global production and testing needs.

2. Can multi-station FCT test fixture be customized for high-efficiency mass production? Yes. We provide full customization of single-station and multi-station FCT test fixture. The upgraded multi-station test jig can complete simultaneous testing of multiple PCBAs, greatly improving testing throughput, reducing labor costs and production cycle, which is very suitable for large-scale electronic mass production lines in Southeast Asia.
