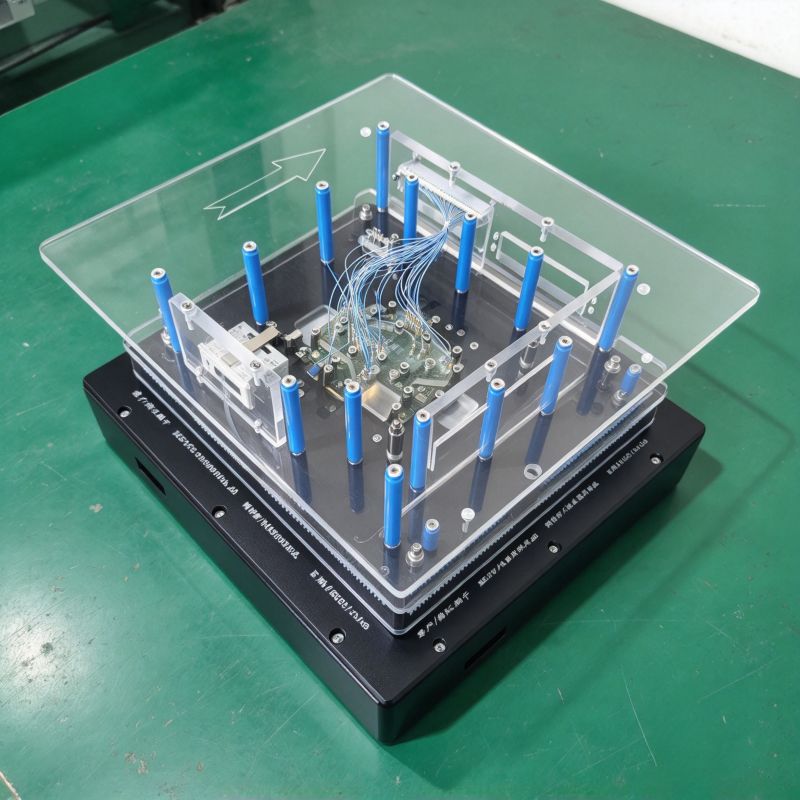

Custom ICT needle bed compatible with TRI tester, built with separated signal wires for high density PCB electrical component testing.
Our TRI compatible ICT fixture with signal wiring is engineered for high-density PCBA boards and fully compatible with TRI ICT test machine. Independent internal signal wiring reduces signal interference. Acrylic positioning plate with guide posts ensures precise alignment during pressing. Probes are arranged to match PCB test points to detect open, short and abnormal component values. The structure allows fast PCB replacement on production line, ideal for power supply boards and small industrial control board mass testing.
Key Features
- Native fit for TRI ICT tester with matched mounting holes
- Separated signal routing to minimize signal crosstalk on high-density boards
- Acrylic positioning plate with guide pins for accurate pressing
- Replaceable spring probes for easy on-site maintenance
- Custom solution for high test point density PCB
- TRI compatible ICT fixture with signal wiring, separate signal routing to minimize signal crosstalk on high-density boards
Applications
- In-circuit test for high-density PCBA circuit boards
- Production line inspection for power boards and industrial control boards
- Fault screening for semi-finished PCBA after SMT assembly
Divider
FAQ
Q1: What is the lead time for high density ICT test fixture?
A1: Normally 7~12 working days after PCB documents and specification are confirmed.
Q2: Can we replace damaged probes on site?
A2: Yes, we supply spare spring probes for easy replacement and maintenance.
