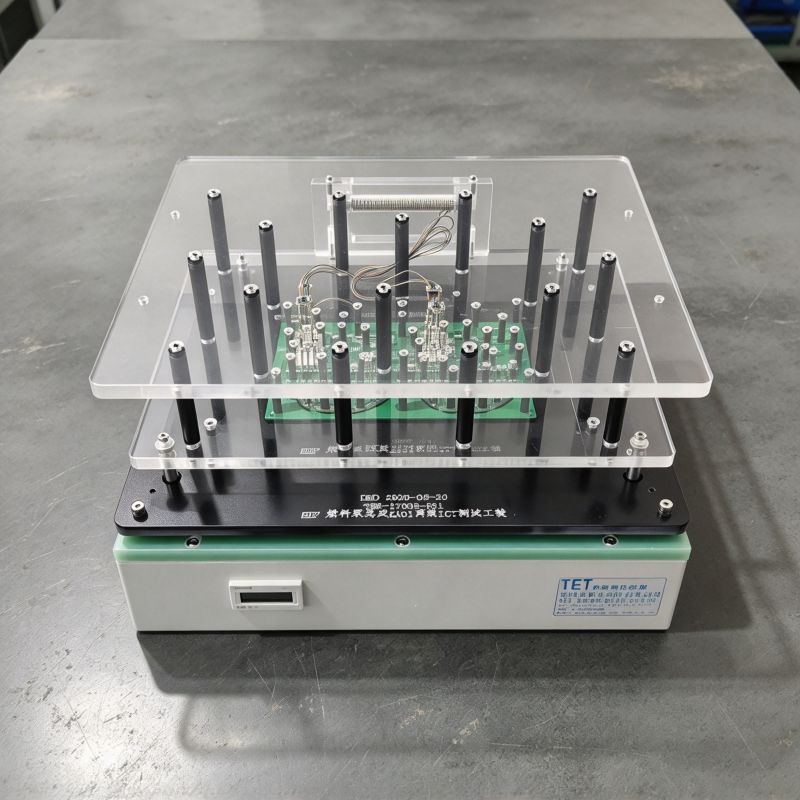

Custom ICT needle bed fixture, compatible with TRI, Teradyne, JET mainstream ICT testers, developed for electrical test of various PCBA boards.
Our custom ICT test fixture can be built according to your selected ICT tester model. We design probe layout based on your PCB drawing. Double-layer acrylic positioning plate ensures accurate PCB placement. It can perform open circuit, short circuit and component parameter testing for PCBA. The base structure can be modified to fit different ICT machine mounting size. Suitable for consumer electronics, home appliance and industrial control PCB mass production testing.
Key Features
- Customizable fixture base compatible with TRI, Teradyne, JET ICT testers
- Double-layer acrylic positioning plate for precise PCB location
- Standard spring probe design for convenient replacement and maintenance
- Adjustable base dimension to match different ICT machine specification
- Support single & multi-layer PCB test solution
Applications
- In-circuit electrical test for various semi-finished PCBA boards
- SMT post fault detection for home appliance and IoT control boards
- ICT test for low volume and mass production PCB projects
FAQ
Q1: Are you able to design ICT fixture for Teradyne tester?
A1: Yes, we can develop custom ICT fixture following Teradyne machine’s mounting and interface specification.
Q2: Is ICT tester model required during customization?
A2: Yes, tester model is critical to design fixture base and signal connection interface.
