TRI ICT Test Fixture for Small PCB | High Density In-Circuit Needle Bed

Custom TRI ICT test fixture for small size PCBA boards, with high density spring probe layout for open, short and component parameter testing.

TRI ICT test fixture for small PCB, high density spring probes, acrylic cover for PCBA in-circuit test

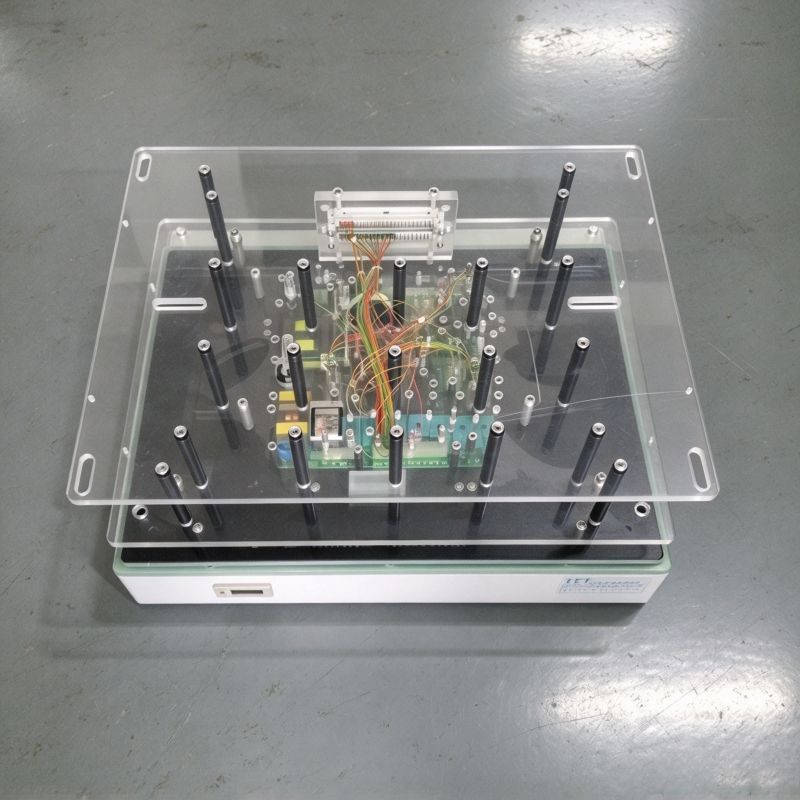

This fixture is a completed TRI ICT test case developed for small PCBA boards. It uses a compact acrylic protective cover and dense spring probe array to detect open circuits, short circuits and passive component values. The probe positions are arranged according to the customer’s PCB test points. The compact structure is especially suitable for small industrial control boards, sensor boards and miniature electronic PCBA testing in mass production.This makes it a practical TRI ICT fixture for small PCB projects where test points are concentrated in a limited area.

Key Features

  • Real completed fixture case for TRI ICT tester
  • High density probe layout for small PCBA boards
  • Compact acrylic cover protects probes and allows visual check
  • Stable probe contact for repeatable production testing
  • Custom positioning structure for small PCB
  • Optimized probe arrangement for small PCB with dense test points

Applications

  • Small PCBA in-circuit testing
  • Sensor board and mini industrial control board test
  • Mass production test for compact electronic PCBA

Divider

FAQ

Q1: Is this fixture suitable for small PCB mass production?
A1: Yes, it is designed for small PCBA boards with stable probe contact and repeatable test cycles.

Q2: Can you increase the probe count for my small PCB?
A2: Yes, probe count and positions are redesigned according to your PCB test point requirements.
