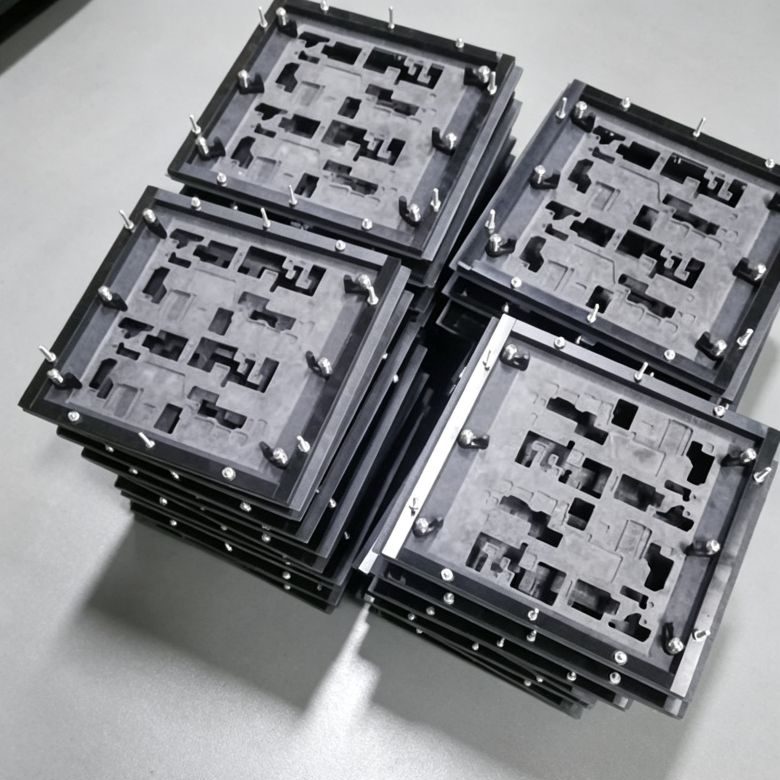

This stacked batch wave soldering fixture is a series of uniform custom wave jigs for continuous mass production. Made of high temperature synthetic stone with locking fasteners, it supports consistent high-volume PCB wave soldering.
This stacked batch wave soldering fixture is designed for large-scale PCBA factories running continuous wave soldering. Each single jig uses high-density synthetic stone material, equipped with metal locking screws and positioning studs. All fixtures are produced to identical tolerance, ensuring consistent soldering quality across the whole batch. The uniform jig design makes replacement and inventory management simple. CNC carved cavities match PCB shape accurately, shielding sensitive surface mount components and exposing through-hole pads. The material resists thermal fatigue, even after long-time repeated use on wave soldering lines.
Key Features
- Batch uniform production, tight tolerance for every jig in the stack
- High density synthetic stone substrate, excellent thermal fatigue resistance for continuous production
- Standardized positioning studs and locking screws, consistent PCB clamping result
- Stable solder masking performance, reduce defective rate in mass wave soldering
Applications
- Large scale PCBA factory continuous wave soldering production lines
- Long run mass production PCB through-hole soldering
- Electronics manufacturing with high daily output requirements
FAQ
Q1: Can you produce a big batch of identical wave fixtures with consistent dimension?
A1: Yes, we maintain strict CNC machining tolerance to guarantee consistency for batch orders.
Q2: What is the advantage of synthetic stone for mass stacked wave jigs?
A2: Synthetic stone has low thermal expansion, so every jig keeps stable flatness after repeated soldering cycles.
