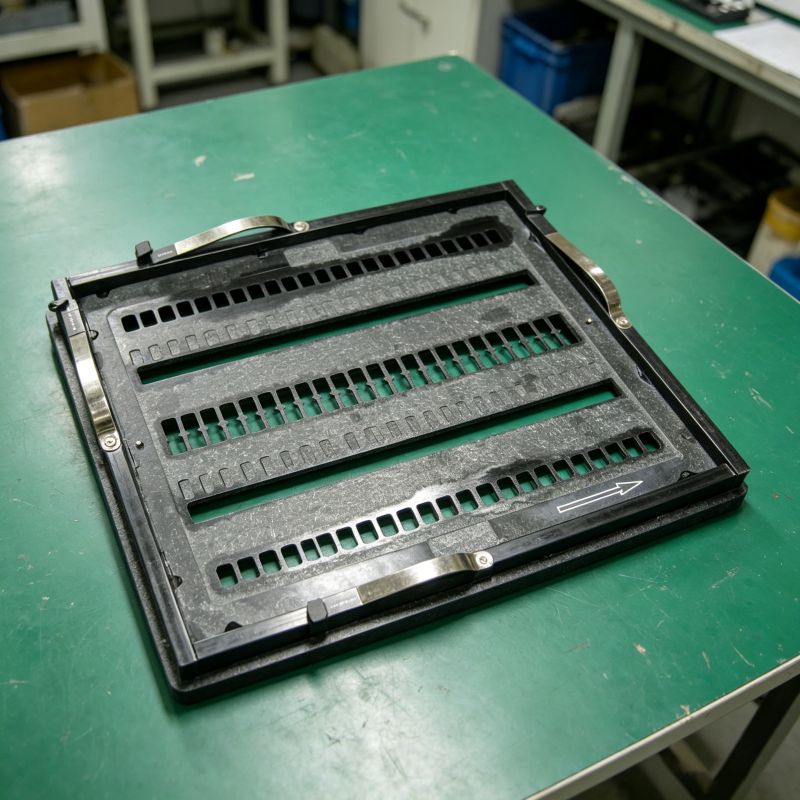

Multi-cavity synthetic stone wave soldering tray, designed with multiple PCB slots and metal handles. It can carry multiple PCBs at one time to improve wave soldering throughput.
Multi-cavity synthetic stone wave soldering tray is engineered for batch PCB wave soldering. Equipped with multiple parallel PCB cavities and stainless steel handles for easy loading/unloading on SMT line. Synthetic stone material guarantees stable dimension under continuous high temperature. It improves production efficiency by processing several PCBs in one wave soldering cycle. Custom cavity quantity and layout are available.
Key Features
- Multi-cavity design for batch PCB processing
- Synthetic stone base, heat resistant & dimension stable
- Stainless steel handles for convenient handling
- Improve SMT wave soldering production capacity
- Custom cavity count and layout as requirement
Applications
- High volume SMT wave soldering production
- Batch assembly of multi-up PCB boards
- PCB mass soldering on SMT production lines
Q: How many PCB cavities can you make on this wave tray?
A: The cavity quantity is fully customizable, we design slot layout according your PCB size and production requirement.
Q: Are the metal handles durable for repeated operation?
A: Yes, we adopt stainless steel handles, sturdy and long service life for daily SMT workshop operation.
