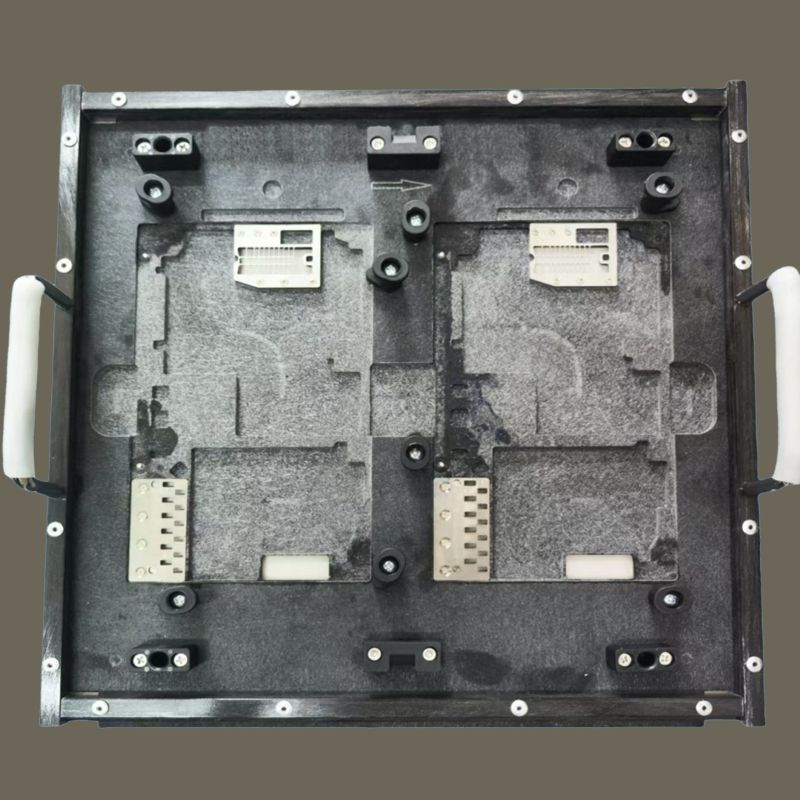

This dual station wave soldering fixture with side handles supports two PCBs per soldering run. Ergonomic side handles simplify manual loading and unloading, perfect for semi-automatic PCBA wave soldering workshop.
This dual station wave soldering fixture uses wear-resistant synthetic stone material with metal reinforcement inserts to improve structural stability. Two independent cavities can carry two PCBs in one soldering process. Attached ergonomic side handles allow operators safely pick and place the fixture on wave soldering conveyor. It has excellent tin resistance, residual solder can be cleaned easily after soldering. It works for both lead-free and leaded wave soldering process.
Key Features
- Dual independent cavities, process two PCBs each cycle to balance efficiency and operation convenience
- Ergonomic fixed side handles, safe and convenient for manual loading and unloading operation
- Wear-resistant synthetic stone base with metal inserts, minimize thermal deformation after long time use
- Good anti-tin performance, easy to clean solder residue, compatible with lead and lead-free solder
Applications
- Semi-automatic PCBA wave soldering stations
- Power supply and adapter circuit board wave soldering
- Semi-manual electronic factory PCB assembly
Q1: Are the side handles removable for storage or modification?
A1: Standard handles are fixed; detachable handles can be customized if you have special requirements.
Q2: Does this dual cavity fixture work for lead-free wave soldering?
A2: Yes, it is compatible with both leaded and lead-free molten tin wave soldering processes.
