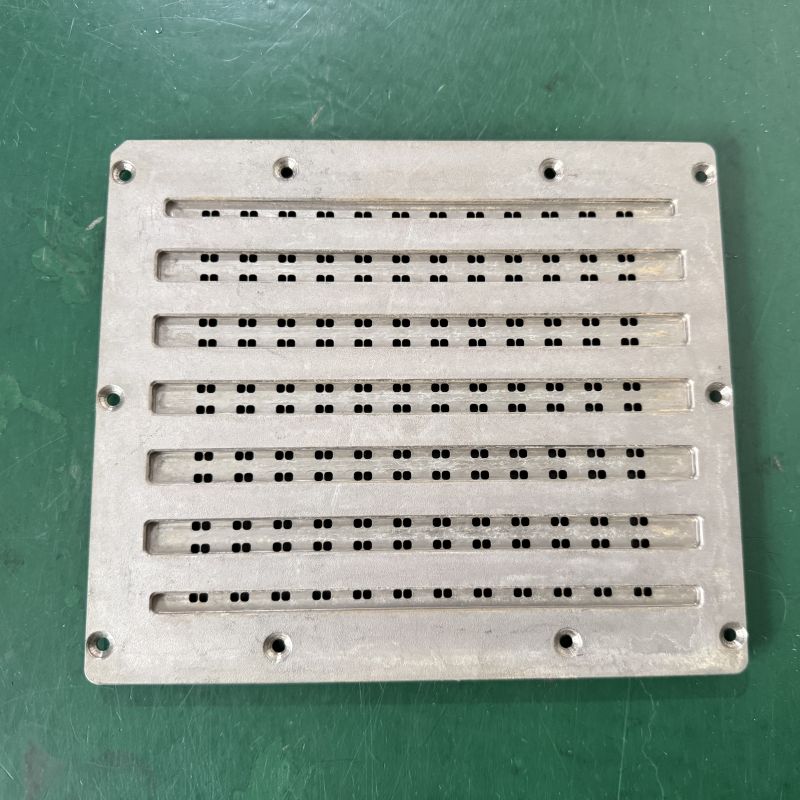

This multi-slot aluminum SMT soldering fixture is machined from solid aluminum plate, designed with parallel long slots for strip-type PCB wave soldering. High rigidity aluminum maintains flatness under high temperature.
This multi-slot aluminum SMT soldering fixture is made of solid aluminum alloy, CNC milled with multiple parallel long strip slots to accommodate strip PCBs. Aluminum alloy material features excellent thermal conductivity and high rigidity, resisting deformation even after long time high temperature exposure. Each slot is precisely sized to hold strip PCB securely, with small positioning holes for accurate PCB alignment. The open slot design allows tin wave to reach solder pads uniformly while shielding the PCB’s top-side SMD components. This jig is widely used for long strip PCBs such as power supply strips and sensor circuit boards. The aluminum surface can be treated with anti-stick coating to reduce tin adhesion.
Key Features
- Solid aluminum alloy body, high rigidity and excellent heat conductivity
- Multiple parallel long slots, suitable for continuous strip PCB soldering
- Precision positioning holes for accurate PCB alignment
- Optional anti-tin coating to reduce solder adhesion
Applications
- Long strip PCB wave soldering for power and sensor modules
- Continuous strip panel SMT production
- High temperature resistant PCB carrier for wave soldering
FAQ
Q1: Can we add anti-tin coating on this aluminum fixture?
A1: Yes, anti-solder coating can be applied to reduce tin sticking and simplify cleaning.
Q2: What PCB type fits this multi-slot aluminum jig?
A2: It is optimized for long strip shaped PCBs with multiple circuits in one strip panel.
