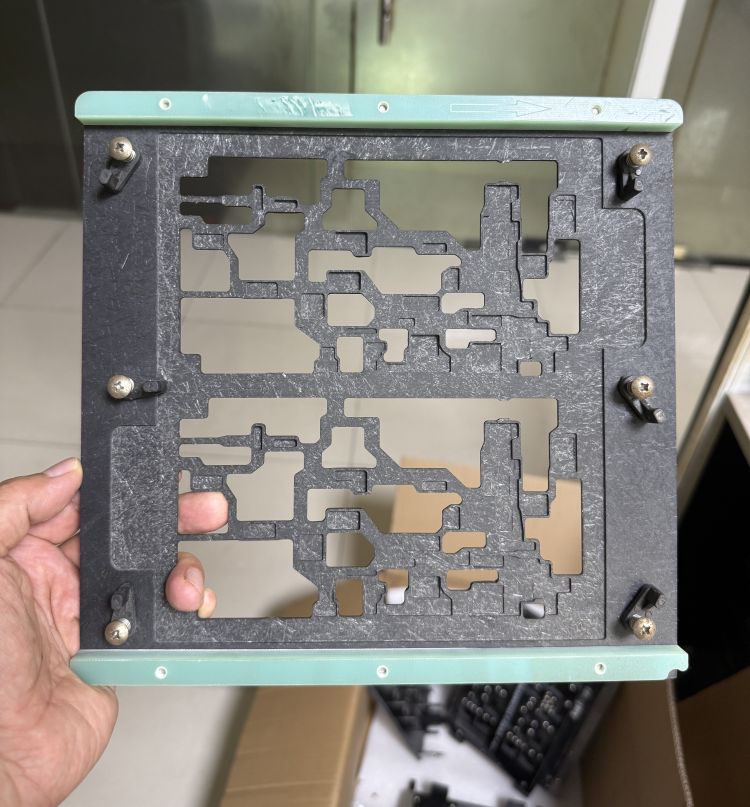

This lightweight green edge SMT wave soldering fixture features a green fiberglass top border and thin composite base. It is lighter in weight for easier manual handling, built for medium-size PCB wave soldering.
This lightweight green edge SMT wave soldering fixture adopts thin high-temperature composite base with green fiberglass reinforcement only on the top edge, reducing overall fixture weight for easier manual loading and unloading. The internal cavities are custom irregular shapes to fit non-standard PCB outlines. Metal positioning screws and side locking clips are distributed on four corners to secure PCB panels. Precision contoured cutouts are machined to match complex PCB profiles, shielding sensitive SMD components. The partial green fiberglass edge balances abrasion resistance and weight, unlike full perimeter fiberglass frames. The lightweight design reduces operator fatigue during repeated fixture handling, especially for manual loading stations. This fixture is suitable for medium batch production with complex non-standard PCB shapes.
Key Features
- Partial green fiberglass top edge reinforcement, lightweight design for easy handling
- Irregular custom cavities for complex non-standard PCB outlines
- Corner locking clips and positioning screws for secure PCB holding
- Thin composite base to reduce overall fixture weight
Applications
- Medium batch SMT production of complex shaped PCB
- Manual loading SMT stations, reduce operator handling fatigue
- Non-standard outline PCB wave soldering projects
FAQ
Q1: What is the difference between green edge and yellow fiberglass edge?
A1: Only the fiberglass material color differs; both deliver high temperature resistance, green edge is adopted for partial lightweight reinforcement.
Q2: Is lightweight composite fixture less durable than thicker heavy composite plates?
A2: The partial fiberglass reinforcement protects the main wearing edge, maintaining service life while reducing weight.
