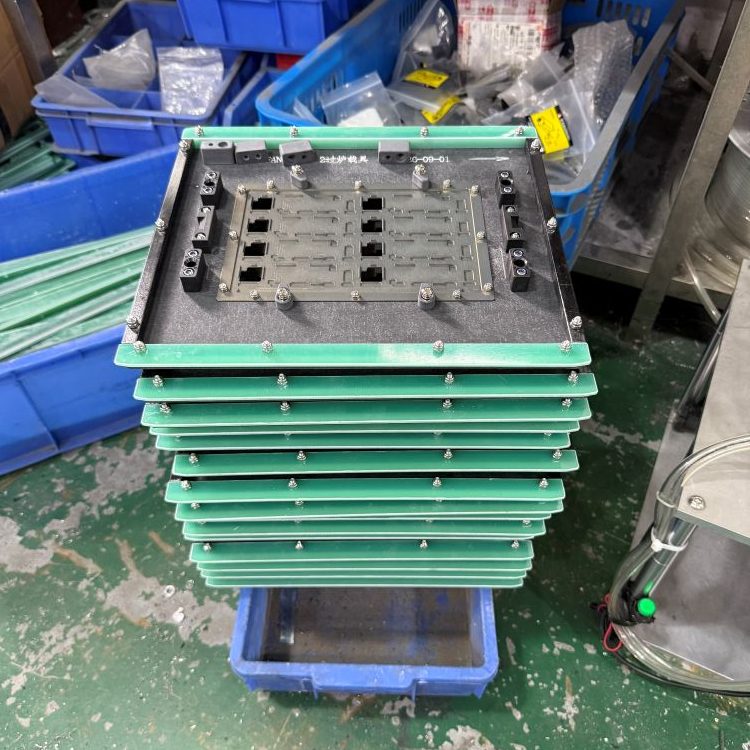

This green full fiberglass edge stackable SMT wave soldering fixture uses full perimeter green fiberglass reinforcement. It features vertical stackable geometry to save workshop floor space for large jig inventories.
This green full fiberglass edge stackable SMT wave soldering fixture adopts full surrounding green fiberglass edging, unlike partial edge reinforcement designs. The full fiberglass frame greatly improves wear resistance and extends service life for heavy repeated use. The outer frame profile is engineered for stable vertical stacking, so dozens of jigs can be piled neatly in workshop storage areas without tipping. Multiple small PCB cavities are arranged in the center composite plate, with heavy-duty metal fasteners for reliable PCB clamping. CNC machined cutouts protect sensitive top-side components and only expose required solder pads. The full green fiberglass edge resists flux corrosion and abrasion from SMT conveyor rails, ideal for factories maintaining a large bank of reusable wave soldering jigs.
Key Features
- Full perimeter green fiberglass edge reinforcement, superior abrasion & flux resistance
- Vertical stackable outer frame for neat bulk storage of many jigs
- Multi-cavity composite base for small PCB batch processing
- Heavy-duty metal fasteners for long term repeated clamping
Applications
- Large scale SMT factories with reusable jig inventory
- PCB wave soldering requiring high wear-resistant carrier frames
- Production workshops with limited storage floor area
FAQ
Q1: What advantages does full green fiberglass edge have over partial edge?
A1: Full edge protection protects all four sides of the composite base from rail wear and flux erosion, longer service life.
Q2: Is there weight difference between full green edge and orange edge frames?
A2: Green fiberglass has similar weight; full edge adds minor weight but delivers much better durability.
