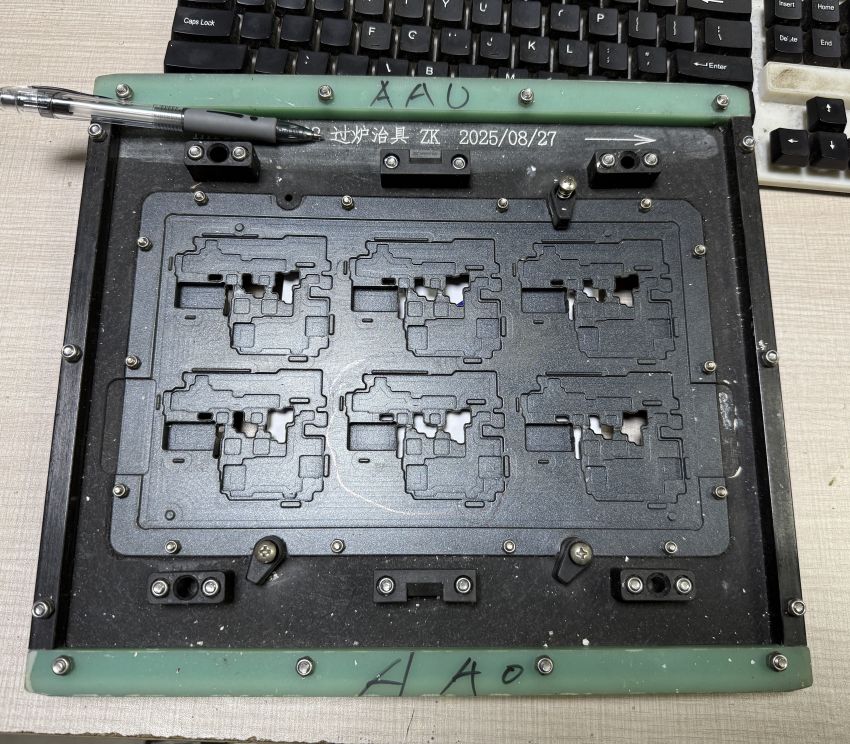

This 6-up panel SMT wave soldering fixture is custom engineered for 6 pieces PCB panel wave soldering. Composite base plate paired with fiberglass edge reinforcement, locking clips hold PCB securely during SMT wave soldering process.
This 6-up multi-cavity SMT wave soldering fixture adopts high-temperature composite substrate with green fiberglass edge reinforcement for improved flatness. Designed with six PCB cavities in one single carrier, it maximizes throughput for medium-volume SMT production lines. CNC precision cutouts mask sensitive SMD components and only expose required through-hole soldering pads. Multiple adjustable locking clips lock PCB panel firmly and prevent shifting or floating while passing over the tin wave. The composite material has low thermal expansion, resisting deformation after repeated thermal cycles. The edge fiberglass strips strengthen the fixture and reduce wear from wave machine conveyor rails.
Key Features
- 6-up multi-cavity layout, 6 PCBs per run to boost SMT line throughput
- Composite base with fiberglass edge reinforcement, anti-warping & long service life
- Adjustable locking clips, stable PCB positioning and anti-displacement
- Precision CNC cutouts, selective masking to protect SMD parts
Applications
- Medium volume SMT factory PCB panel wave soldering
- Multi-up PCB panel through-hole component soldering
- Electronics assembly wave soldering production lines
FAQ
Q1: Can you modify the cavity layout to fit our custom PCB outline?
A1: Yes, the 6-up cavity arrangement can be fully customized based on your Gerber and PCB drawing.
Q2: Does composite material easier to clean tin residue than synthetic stone?
A2: Composite plate has a smooth surface, tin slag can be cleaned quickly with regular maintenance.
