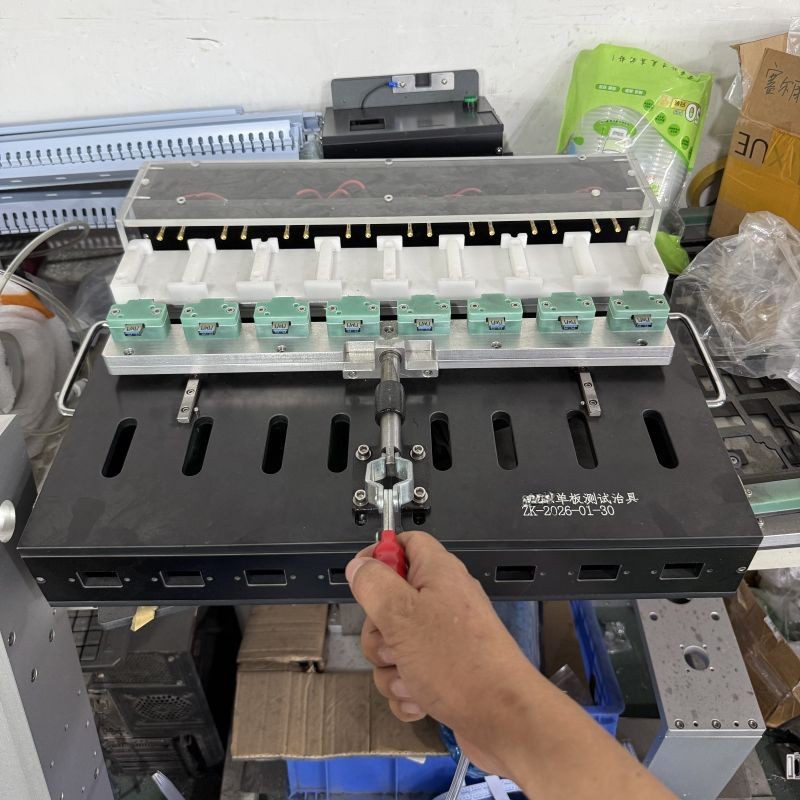

Our multi‑station power‑supply & charger PCBA test fixture is purpose‑oriented multi‑up test fixture targeting power‑supply and charger PCBA boards, working together with external test systems for fast batch function validation.
This multi‑up test fixture is purpose‑built for power‑related PCBA including power supply units and charger circuit boards. Multiple test positions are arranged to process several power boards in single test loop. Manual quick‑release clamping structure facilitates frequent board swap during continuous batch testing. Special attention is paid on high‑current signal transmission inside fixture to satisfy power‑board measuring requirement. This fixture serves as mechanical and signal transfer hardware, all electrical measurement functions rely on externally matched ATE or FCT test host. We have accumulated abundant project experience developing custom fixtures for various power PCBA variants.
Key Features
‑ Specialised layout for power‑supply and charger PCBA circuit boards
‑ Optimized internal wiring adapting high‑current power‑board test scenarios
‑ Hand‑operated quick‑clamping structure for fast‑cycle board replacement
‑ Multiple‑station simultaneous loading for accelerated batch screening
‑ Signal terminals ready for connecting external power‑oriented test equipment
Applications
‑ Charger PCBA batch function verification
‑ Switching power‑supply module production‑end quality inspection
‑ Power electronics assembly inline batch testing
‑ Lab & production‑site multi‑sample power‑board performance screening
FAQ
Q1: Can this fixture complete power parameter test independently?
A1: It cannot work standalone. External power‑oriented ATE or FCT test host is essential to read voltage‑current parameters.
Q2: How many stations can be customised for power board variants?
A2: Station quantity, cavity size and current‑handling capability can be customised based on your power‑board specification.
