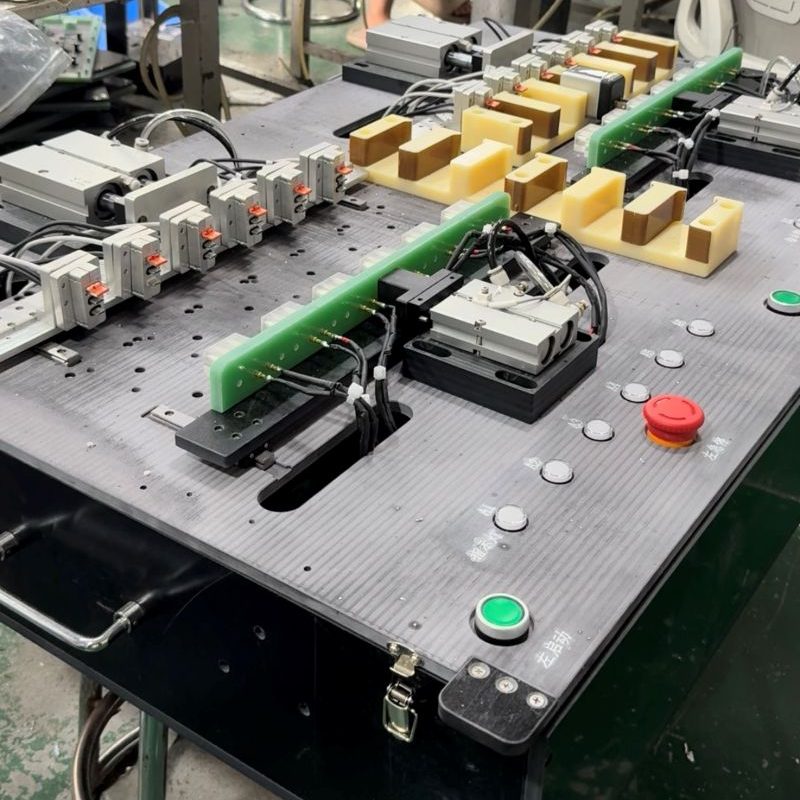

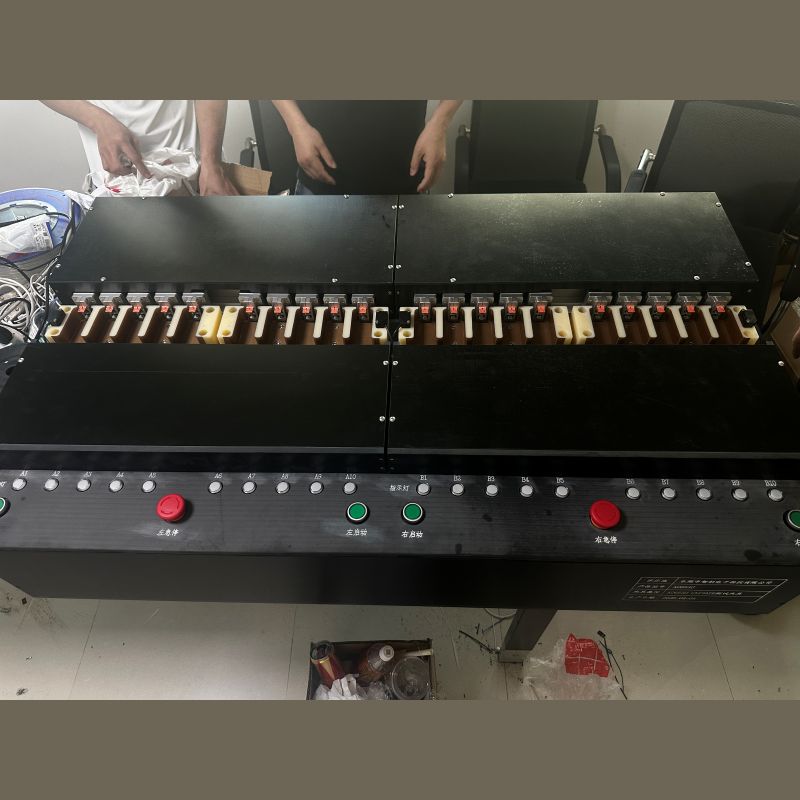

Extended long‑base multi‑channel test rig built for simultaneous parallel testing of multiple PCBA units, designed to connect to external ATE or FCT control hosts.
Featuring extended long‑row base platform, this multi‑channel parallel test rig integrates abundant independent test channels within one single unit, targeting multiple‑unit synchronous inspection for strip‑arranged or compact PCBA samples. Every individual channel maintains reliable electrical isolation to secure measuring accuracy when all stations run simultaneously. Front‑panel physical buttons and status indicator lamps grant straightforward manual operation for on‑site workshop staff. This rig serves purely as test hardware platform; full test execution relies on externally connected test host systems. We accumulate rich practical experience designing long‑base multi‑channel rigs for diverse electronics manufacturing projects.
Key Features
‑ Extended long‑base structural design for multi‑unit side‑by‑side arrangement
‑ Full electrical isolation among every independent measuring channel

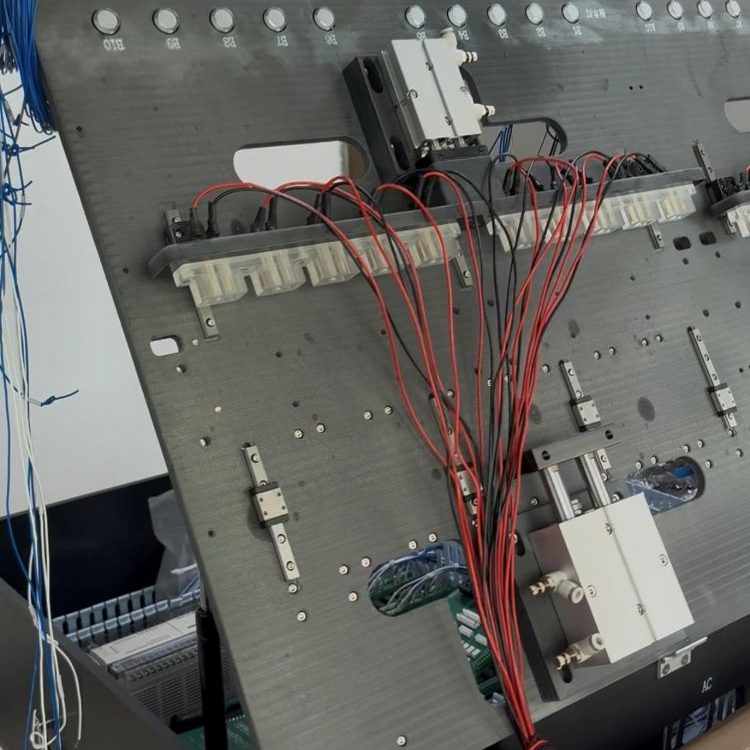

‑ Intuitive front‑panel button control plus real‑time status lamp indication
‑ Standard signal interface reserved for external ATE / FCT host docking
‑ Robust mechanical construction adapting to non‑stop production‑line cycles
Applications
‑ Long‑arranged multi‑unit PCBA batch parallel inspection
‑ High‑channel‑count function test matching external measurement hosts
‑ Electronics factory inline multi‑sample synchronous quality screening
‑ Custom long‑form test platform for special‑layout circuit assemblies
FAQ
Q1: Does this long‑base rig come with built‑in measurement control unit?
A1: No. It is a mechanical‑signal test rig, external ATE or FCT controller is required to complete electrical testing.
Q2: Can the length of base frame be reworked for our board size?
A2: Frame length, channel layout and station spacing can be fully customised for your PCBA dimension.
