Custom‑built 10‑station PCBA ATE test fixture optimized to mate with ATE systems, performing synchronous functional verification for batches of PCBA assemblies.

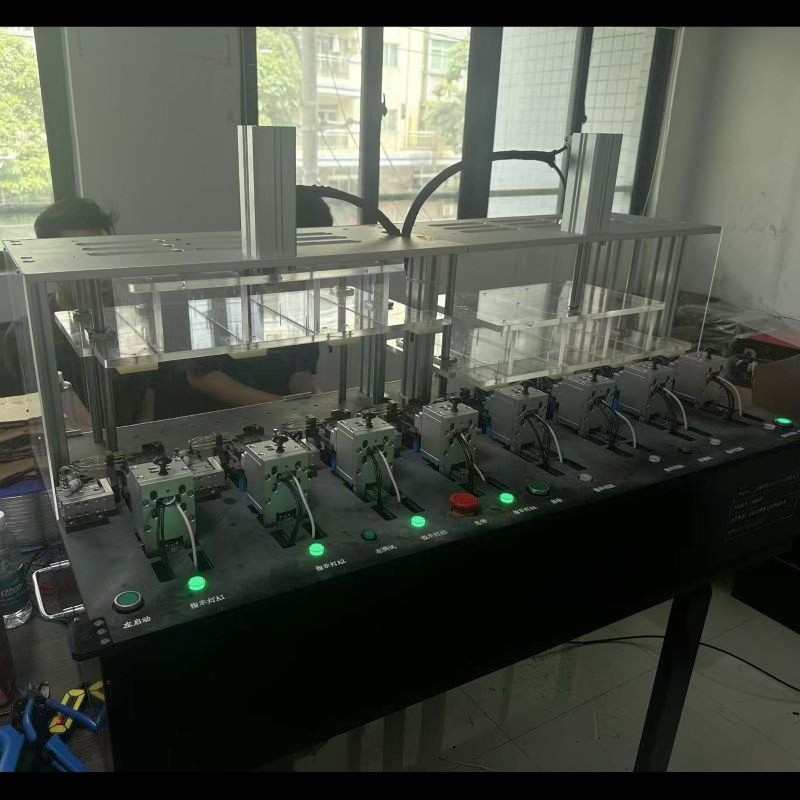

This custom‑engineered 10‑station test fixture is tailored to interface with ATE test platforms, supporting synchronous loading and testing of up to ten PCBA samples per cycle. Internal signal routing is carefully isolated between each station to suppress cross‑channel interference during parallel measurement. Though reference photos show open‑cable cabinet status for hardware display, the finished unit will adopt complete housing structure. All signal terminals are arranged for fast plug‑in connection toward ATE mainframe, reducing wiring workload on production site. Each test position adopts precision positioning structure to guarantee repeatable probe contact for long‑run batch production.
Key Features of 10‑Station PCBA ATE Test Fixture

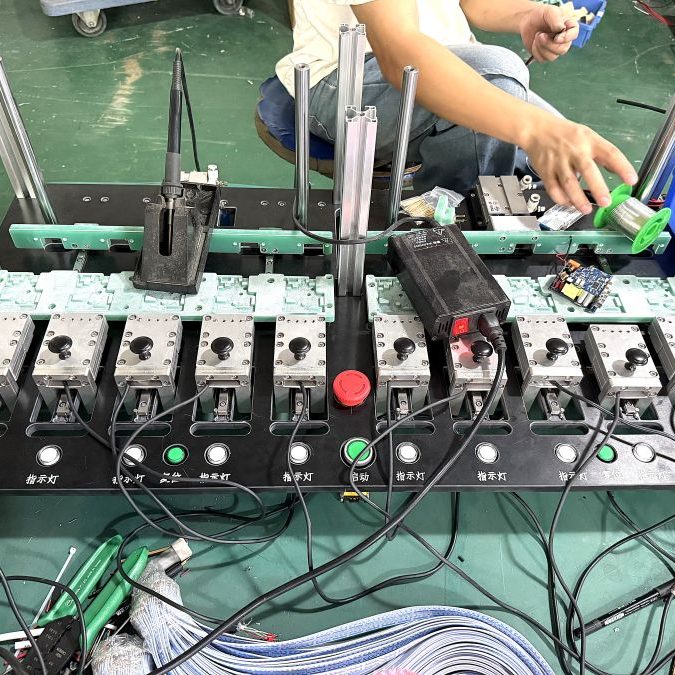

‑ 10 independent test stations for one‑cycle batch PCBA validation
‑ Channel‑to‑channel electrical isolation to avoid signal crosstalk
‑ Pre‑wired signal harness designed for quick docking with ATE main equipment
‑ Precision positioning locating mechanism for stable repeated probing
‑ Custom‑adaptable housing structure for factory‑floor deployment
Applications
‑ ATE‑integrated mass‑batch PCBA function testing
‑ Mid‑high volume assembly verification for consumer electronics modules
‑ Production‑end batch electrical performance screening
‑ Workshop test station expansion for existing ATE platforms
FAQ
Q1: Is ATE mainframe included with this fixture?
A1: Only the test fixture hardware is supplied. ATE host equipment shall be prepared on client side.
Q2: Can station quantity be modified from 10 to other counts?
A2: Yes, we support custom station‑count adjustment according to your throughput target and board dimension.
